John Deere 3150 Transmission


John Deere 3150 tractor photo
1985 - 1987
Utility tractor
Series map:
3150
105.6hp*
*Estimated engine power for comparison only.
Transmission
TransmissionTop Shaft Synchronized Hi-Lo (TSS)
Typetwo-speed power shift
Gears16 forward and 8 reverse
Four gears in two ranges, plus reverse range, with two-speed power shift.
Speeds
With 18.4-38 rear tires.

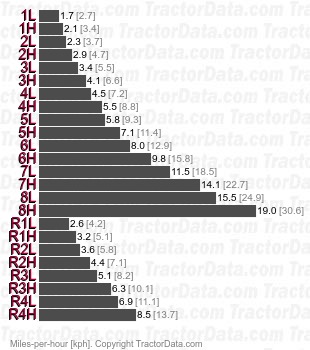

3150 Top Shaft Synchronized (TSS) Hi-Lo two-speed power shift speeds
