John Deere 755
|
|
| Production | |
| Manufacturer | John Deere |
| Compact Utility tractor | |
| Factories | Horicon, Wisconsin, USA |
| Augusta, Georgia, USA | |
| Original price was $15,000 in 1998 | |
| John Deere 755 Engine | |
| Yanmar 0.9L 3-cyl diesel | |
 Engine details ... |
| John Deere 755 Transmission | |
| hydrostatic | |
 Transmission details ... |
| John Deere 755 Power | |
| Engine | 20 hp 14.9 kW |
| PTO (claimed) | 15 hp 11.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Two-post Roll-Gard ROPS. Optional canopy and high ROPS with extra headroom. Optional weather enclosure. | |

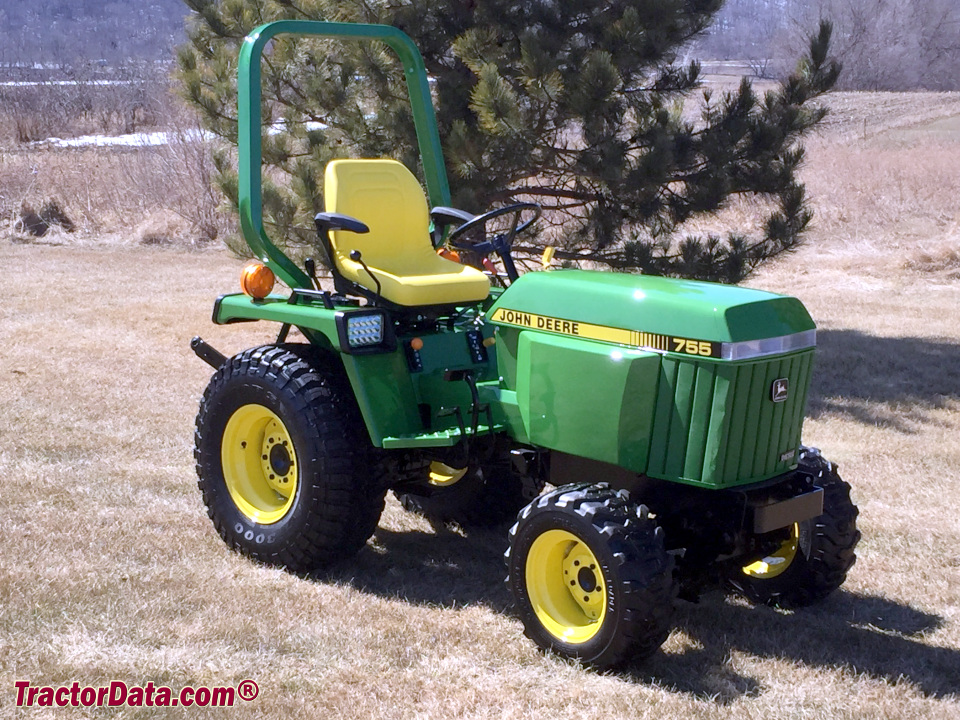

| Photos | |
 | |
 John Deere 755 photos... | |
| Capacity | |
| Fuel | 4.4 gal 16.7 L |
| Hydraulic system | 4.5 gal 17.0 L |
| Front axle | 2.25 qts 2.1 L |
| Hydraulics | |
| Type | open center |
| Capacity | 4.5 gal 17.0 L |
| Pressure | 2050 psi 141.3 bar |
| Rear valves | 2 OptOptional |
| Mid valves | 2 OptOptional |
| Total flow | 5.6 gpm 21.2 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at 24"/610mm) | 785 lbs 356 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@3200 |
| Mid PTO | independent |
| Mid PTO Type | 2100 |
| Engine RPM | 2100@3200 |
| Dimensions & Tires | |
| Wheelbase | 57 inches 144 cm |
| Weight | 1645 to 1780 pounds |
| Front tire | 4.00x15 |
| 2WD Rear tire | 8.3x16 |
 Full dimensions and tires ... | |
| John Deere 755 attachments | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 755 Serial Number Location | |
 | |
| Serial number plate located below the rear PTO shaft. |
| 755 Serial Numbers | |
| 1986 | M0360001 |
| 1987 | M0420001 |
| 1988 | M0475001 |
| 1989 | M0595001 |
| 1990 | M010001 |
| 1991 | M0100001 |
| 1992 | LV100700 |
| 1993 | LV130000 |
| 1994 | LV165001 |
| 1995 | LVA165180 |
| 1996 | LVE190001 |
| 1997 | LVE200001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Battery CCA | 491 |
| Battery volts | 12 |
| References | |
 | |
| Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere | |
| Lawn & Grounds Care Sales Manual published in 1997, by John Deere* | |
| Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
| Golf & Turf Equipment Purchasing Guide published in 1993, by John Deere | |
| Golf & Turf Equipment Purchasing Guide published in 1997, by John Deere | |
| Golf and Turf Equipment Purchasing Guide published in 1998, by John Deere | |
| Hydrostatic Diesel Tractors published in 1987, by John Deere | |
| Hydrostatic Diesel Tractors published in 1988, by John Deere | |
| Compact Tractors Under 40 Horsepower published in 1991, by John Deere | |
| Compact Utility Tractors published in 1993, by John Deere | |
| John Deere Compact Utility Tractors published in 1995 | |
| Compact Utility Tractors Product Information Handbook published in 1991, by John Deere | |
| *Publication contains known errors. | |
 | |
| Operator's Manual 51 and 52 Loaders (OMTY20793) published in 1986 | |
| Operator's Manual 655, 755 and 855 Tractors (OMM70367) published in 1986 | |
| Operator's Manual 655, 755 and 855 Tractors (OMM75873) published in 1988 | |
| Operator's Manual 655, 755, 855 and 955 Tractors (OMM92614) published in 1990 | |
| Operator's Manual 755, 855 and 955 Tractors (OMM95303) published in 1991 | |
| Technical Manual 655, 755, 855, 955, 756 and 856 Compact Utility Tractors (TM1360) published in 1996 |
