Tractors > John Deere > 655

John Deere 655 Engine



John Deere 655 tractor photo
1986 - 1990
55 Compact Series
Compact Utility tractor
Series map:
655
755
16.0hp
20.0hp
Engine Detail
Yanmar 3TN66UJ
diesel
3-cylinder
liquid-cooled inline
Displacement40.2 ci
0.7 L
Bore/Stroke2.598x2.528 inches
66 x 64 mm
Power16 hp
11.9 kW
Air cleanerdry element
Pre-heatingglow plugs
Compression22.4:1
Rated RPM3200
Operating RPM1400-3425
Starter volts12
Coolant capacity4 qts
3.8 L
Engine Oil

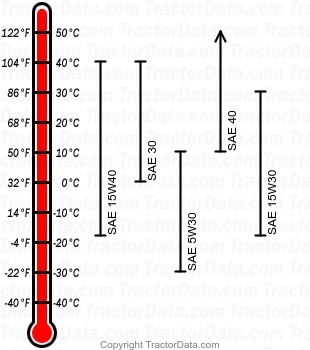

655 diesel engine oil chart
Oil capacity2.5 qts
2.4 L
