John Deere 4650 Transmission


John Deere 4650 tractor photo
1983 - 1988
50 Series
Row-Crop tractor
Series map:
4450
4650
4850
158.2hp
187.7hp
207.9hp
Transmission options
16-speed partial power shift
15-speed full power shift
Transmission
TransmissionJohn Deere Quad-Range
Typepartial power shift
Gears16 forward and 6 reverse
ClutchPerma-Clutch wet disc
Oil capacity107.6 qts
101.8 L
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.
Speeds
20.8-38 rear tires.
4650 Quad-Range partial power shift speeds
Shift Pattern
John Deere 4650 transmission controls
Transmission
TransmissionJohn Deere Power Shift
Typefull power shift
Gears15 forward and 4 reverse
ClutchPerma-Clutch wet disc
Oil capacity74.4 qts (2WD)
70.4 L
 86.4 qts (4WD)
81.8 L
Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.
Speeds
20.8-38 rear tires.

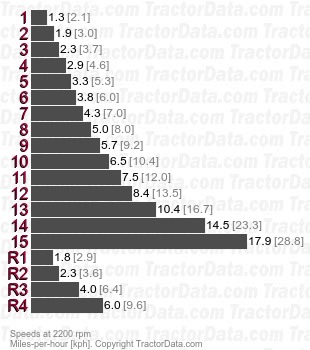

4650 Power Shift full power shift speeds
Shift Pattern
John Deere 4650 transmission controls
