John Deere 4650 Tests


John Deere 4650 tractor photo
1983 - 1988
50 Series
Row-Crop tractor
Series map:
4450
4650
4850
158.2hp
187.7hp
207.9hp
Tractor Tests
NTTL 1460: diesel Power Shift 2WD
NTTL 1477: diesel Quad-Range 2WD
Nebraska Tractor Test 1460

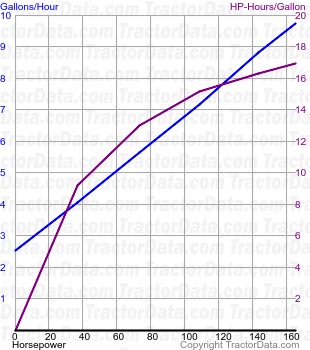

4650 fuel use from test 1460
Nebraska Tractor Test 1460
Diesel Power Shift 2WD
October 9 - 28, 1982
Link: Nebraska Tractor Test 1460 file
PTO performance
Power at rated engine speed165.52 hp
123.4 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power137.31 hp
102.4 kW
Fuel use9.6 gal/hour
36.3 l/hour
Gear 10 used for power test.
Max pull16,746 lbs
7595 kg
Gear 5 used for pull test.
Nebraska Tractor Test 1477
4650 fuel use from test 1477
Nebraska Tractor Test 1477
Diesel Quad-Range 2WD
April 7 - 26, 1983
Link: Nebraska Tractor Test 1477 file
PTO performance
Power at rated engine speed165.70 hp
123.6 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power142.31 hp
106.1 kW
Fuel use9.5 gal/hour
36.0 l/hour
Max pull16,814 lbs
7626 kg
