John Deere 2950 Transmission


John Deere 2950 tractor photo
1983 - 1988
2050 Series
Utility tractor
Series map:
2750
2950
83.3hp*
94.4hp*
*Estimated engine power for comparison only.
Transmission options
16-speed partial power shift
12-speed partially synchronized
Transmission
TransmissionJohn Deere Hi-Lo TSS
Typepartial power shift
Gears16 forward and 8 reverse
Four gears in two ranges, plus reverse range with left-hand high-low power shift. Synchronized shifting between gears in a given range.
Speeds
With 18.4-34 rear tires.

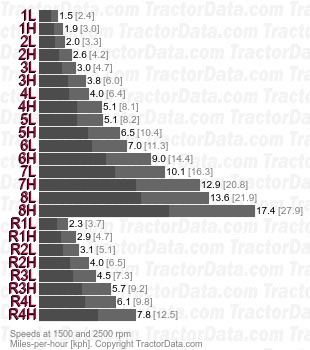

2950 Hi-Lo TSS partial power shift speeds
Transmission
TransmissionJohn Deere TSS Creeper
Typepartially synchronized
Gears12 forward and 8 reverse
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.
Speeds
With 18.4-34 rear tires.
2950 TSS Creeper partially synchronized speeds
Shift Pattern
John Deere 2950 transmission controls
