John Deere 2550 Transmission


John Deere 2550 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2350
2550
2750
61.1hp*
72.2hp*
83.3hp*
*Estimated engine power for comparison only.
Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed power shuttle
12-speed partially synchronized
Transmission
TransmissionJohn Deere Top-Shaft Synchronized
Typepartially synchronized
Gears8 forward and 4 reverse
Oil capacity52.8 qts
50.0 L
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.
Speeds
With 16.9-30 rear tires.

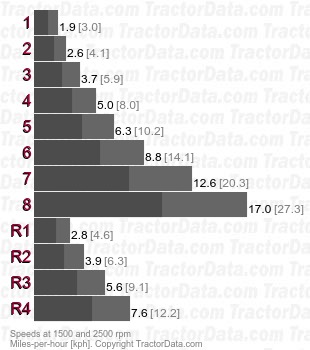

2550 Top-Shaft Synchronized partially synchronized speeds
Transmission
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized
Typepartial power shift
Gears16 forward and 8 reverse
Clutchdry disc
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).
Speeds

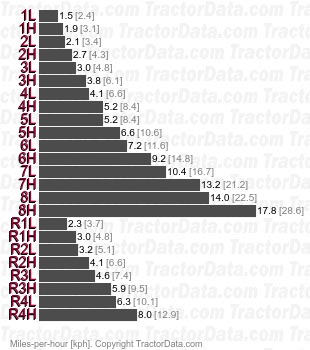

2550 Hi-Lo Top-Shaft Synchronized partial power shift speeds

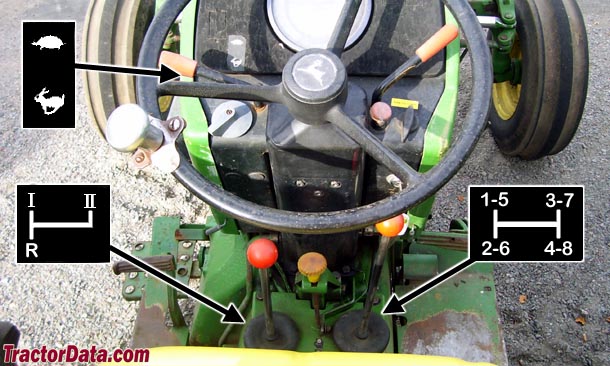

Shift Pattern
John Deere 2550 transmission controls
Transmission
TransmissionJohn Deere Direction Reverser
Typepower shuttle
Gears8 forward and 4 reverse
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range.
Speeds
With 16.9-30 rear tires.
2550 Direction Reverser power shuttle speeds
Transmission
TransmissionJohn Deere TSS Creeper
Typepartially synchronized
Gears12 forward and 8 reverse
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.
Speeds
With 18.4-34 rear tires.

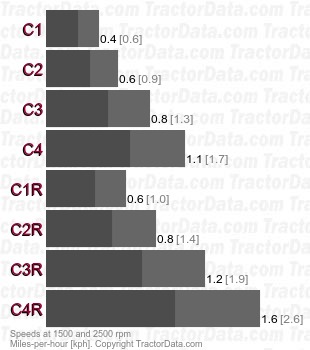

2550 TSS Creeper partially synchronized speeds
