John Deere 2255


John Deere 2255 tractor photo
1983 - 1987
2050 Series
Orchard/Vineyard tractor
Production
ManufacturerJohn Deere
Orchard/Vineyard tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price$16,842 (1983 )
$18,000 (1987 )
Variants
2255 Orchardlow-profile
2255 Vineyardnarrow-profile
John Deere 2255 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank19.5 gal
73.8 L
Engine details ...
John Deere 2255 Transmissions
8-speed partially synchronized
16-speed partial power shift
8-speed power shuttle
Transmission details ...
John Deere 2255 Power
PTO (claimed)50 hp
37.3 kW
Mechanical
Two-wheel drive
Differential lockmechanical rear
Steeringpower assist
Wet disc brakes
Open operator station. Low-profile ROPS available.
Photos
No photos of the John Deere 2255 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Valves1
Pump flow13 gpm
49.2 lpm
Tractor hitch
Rear TypeII/I
Controlload and depth control
Rear lift2,020 lbs
916 kg
Power Take-off (PTO)
Rear PTOindependent
 live (with reverser)
Rear PTO Type540
Dimensions & Tires
Wheelbase75 inches
190 cm
Weight5090 to 5115 pounds
Front tire9.5-15
Rear tire18.4-16.1 (Orchard)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps33
Battery volts12
References

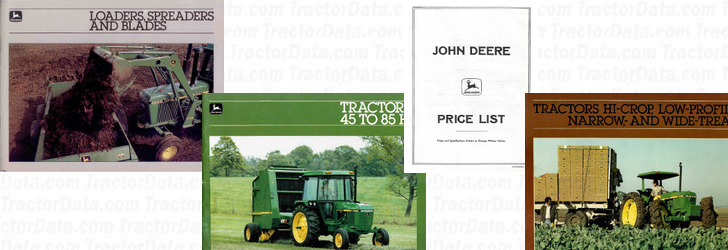

2255 references literature
Loaders, Spreaders and Blades published in 1984, by John Deere
Tractors 45 to 85 HP published in 1984, by John Deere
Agricultural Price List published in 1983, by John Deere
Tractors Hi-Crop, Low-Profile, Narrow- and Wide-Tread published in 1985, by John Deere
