John Deere 8450 Transmission


John Deere 8450 tractor photo
1982 - 1988
8050 Series
Four-wheel Drive (4WD) tractor
Series map:
8450
8650
225.0hp
290.0hp
Transmission
TransmissionQuad-Range
Typepartial power shift
Gears16 forward and 6 reverse
ClutchPerma-Clutch hydraulic wet discs
Oil capacity150 qts
142.0 L
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.
Speeds
18.4-38 tires

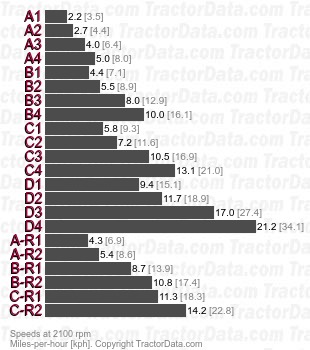

8450 Quad-Range partial power shift speeds
