John Deere 2940 Transmission


John Deere 2940 tractor photo
1980 - 1982
2040 Series
Utility tractor
Series map:
2640
2940
77.8hp*
91.1hp*
*Estimated engine power for comparison only.
Transmission
TransmissionJohn Deere TSS High-Low
Typepartial power shift
Gears16 forward and 8 reverse
Oil capacity63.4 qts
60.0 L
Four gears in two ranges, plus reverse range. Left-hand power shift between direct drive and lower range.

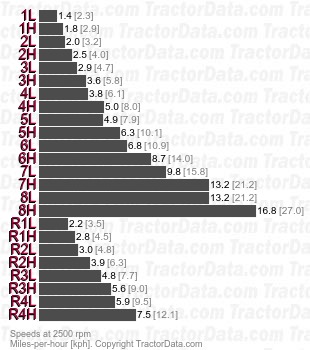

Speeds
With 18.4-34 rear tires.
2940 TSS High-Low partial power shift speeds
Shift Pattern
John Deere 2940 transmission controls
