John Deere 7810 Tests


John Deere 7810 tractor photo
1997 - 2003
7010 Series
Row-Crop tractor
Series map:
7710
7810
155.0hp
175.0hp
Tractor Tests
OECD 1728: diesel PowrQuad 16-speed 4WD
OECD 1729: diesel PowerShift 4WD
OECD 1807: diesel IVT 4WD
OCED Tractor Test 1728

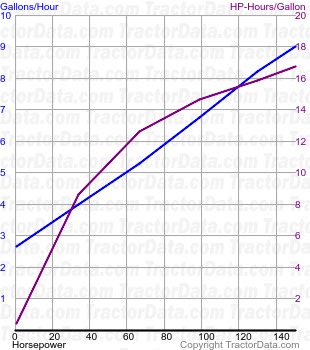

7810 fuel use from test 228
OCED Tractor Test 1728
Diesel PowrQuad 16-speed 4WD
June 3 - 16, 1997
Link: OCED Tractor Test 1728 file
PTO performance
Max power166.08 hp
123.8 kW
Fuel use9.2 gal/hour
34.8 l/hour
Power at rated engine speed151.32 hp
112.8 kW
Fuel use9.2 gal/hour
34.8 l/hour
Drawbar performance
Max power138.85 hp
103.5 kW
Fuel use9.3 gal/hour
35.2 l/hour
Max pull19,825 lbs
8992 kg
OCED Tractor Test 1729

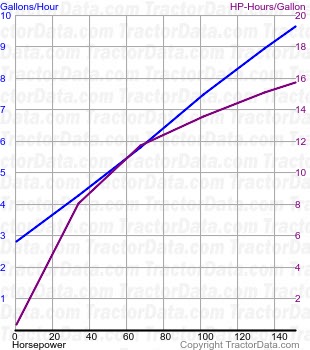

7810 fuel use from test 229
OCED Tractor Test 1729
Diesel PowerShift 4WD
May 30 - June 18, 1997
Link: OCED Tractor Test 1729 file
PTO performance
Max power165.42 hp
123.4 kW
Fuel use9.1 gal/hour
34.4 l/hour
Power at rated engine speed150.17 hp
112.0 kW
Fuel use9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power129.42 hp
96.5 kW
Fuel use9.0 gal/hour
34.1 l/hour
Gear 9 used for power test.
Max pull20,200 lbs
9162 kg
Gear 5 used for pull test.
OCED Tractor Test 1807

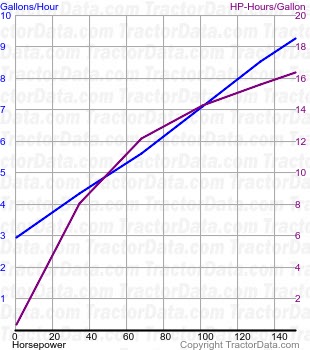

7810 fuel use from test 373
OCED Tractor Test 1807
Diesel IVT 4WD
April 24 - May 31, 2002
Link: OCED Tractor Test 1807 file
PTO performance
Max power167.58 hp
125.0 kW
Fuel use9.7 gal/hour
36.7 l/hour
Power at rated engine speed151.14 hp
112.7 kW
Fuel use9.6 gal/hour
36.3 l/hour
Drawbar performance
Max power139.47 hp
104.0 kW
Fuel use9.3 gal/hour
35.2 l/hour
Pull at 8 KPH
Max pull17,338 lbs
7864 kg
Pull at 4 KPH
