John Deere 4640


John Deere 4640 tractor photo
1978 - 1982
Iron Horses Series
Row-Crop tractor
Series map:
4440
4640
4840
144.4hp*
172.2hp*
200.0hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price$46,316 (1982 Quad-Range ROPS 2WD )
$53,123 (1982 Power Shift Cab 2WD )
John Deere 4640 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...
John Deere 4640 Transmissions
16-speed partial power shift
8-speed full power shift
Transmission details ...
John Deere 4640 Power
PTO (claimed)155 hp
115.6 kW
Drawbar (tested)132.44 hp
98.8 kW
PTO (tested)156.30 hp
116.6 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 HFWD 4WD
Differential lockpedal-actuated hydraulic
Steeringhydrostatic power
Differential hydraulic wet disc brakes
Sound-Gard cab standard.
Capacity
Fuel83 gal
314.2 L
Hydraulic system16.5 gal
62.5 L
Hydraulics
Typeclosed center
Capacity16.5 gal
62.5 L
Valves2 or 3
Pump flow23 gpm
87.1 lpm
Tractor hitch
Rear TypeIII/IIIN
Rear lift7328 lbs
3323 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase118.5 inches
300 cm
Weight14350 to 15700 pounds
Front tire11.00-16
Rear tire18.4-38
Full dimensions and tires ...
4640 Serial Number Location

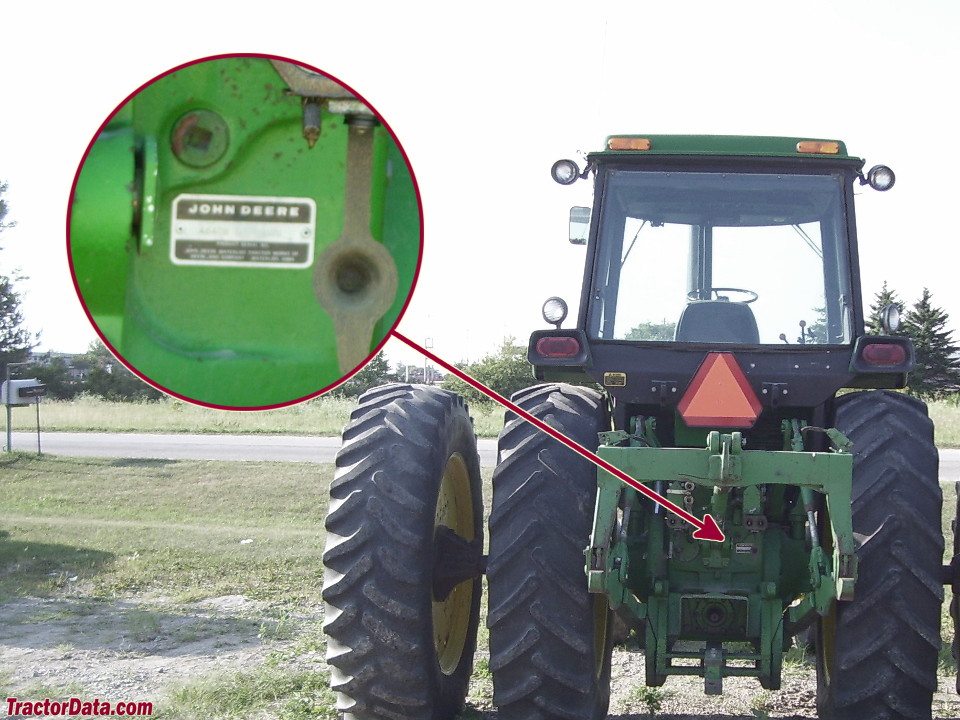

John Deere 4640 serial number location
Serial number plate on the rear of the 4640, above the PTO shaft.
4640 Serial Numbers
19781000
19797422
198013860
198119459
198225729

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Batteries2
Battery volts6
References
4640 references literature
The New Iron Horses published in 1978, by John Deere
Tractors 90 to 180 HP published in 1979, by John Deere
Tractors 90, 110, 130, 155, 180 HP published in 1979, by John Deere
Row-Crop Tractors Product Information Handbook published in 1977, by John Deere
40 Series Row-Crop Tractors Product Information Handbook published in 1982, by John Deere
Performance on the Leading Edge published in 1978, by John Deere
Performance on the Leading Edge published in 1978, by John Deere
