John Deere 4640 Transmission


John Deere 4640 tractor photo
1978 - 1982
Iron Horses Series
Row-Crop tractor
Series map:
4440
4640
4840
144.4hp*
172.2hp*
200.0hp*
*Estimated engine power for comparison only.
Transmission options
16-speed partial power shift
8-speed full power shift
Transmission
TransmissionJohn Deere Quad-Range
Typepartial power shift
Gears16 forward and 6 reverse
Four gears (1-4) in four ranges (A-D). Power shift between pairs 1-2 and 3-4 in each range, with synchronized shift between 2-3. Two reverses in ranges A-C. Tractor must be stopped, and clutch used, to shift ranges. Power shift is provided hy a hydraulically-controlled planetary that provides an under-drive to each gear.
Speeds
4640 Quad-Range partial power shift speeds
Shift Pattern
John Deere 4640 transmission controls
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears8 forward and 4 reverse
Clutchless shift-on-the-move power shift between all eight forward and four reverse gears. Inching pedal provided for hooking up implements and other precision work.
Speeds

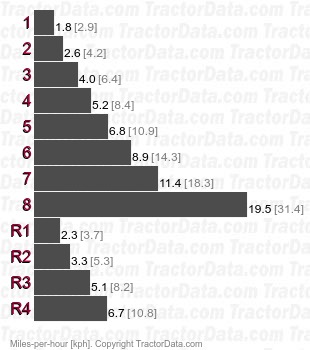

4640 PowerShift full power shift speeds
Shift Pattern
John Deere 4640 transmission controls
