John Deere 2030 Tests


John Deere 2030 tractor photo
1971 - 1975
Generation II Series
Utility tractor
Series map:
2030
2630
68.0hp
78.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1084: gasoline 16-speed 2WD
NTTL 1085: diesel 16-speed 2WD
Nebraska Tractor Test 1084

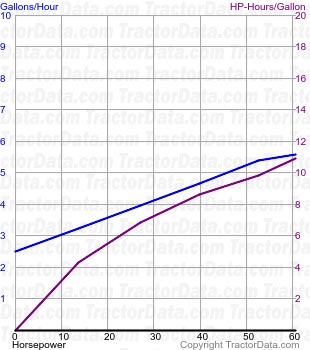

2030 fuel use from test 1084
Nebraska Tractor Test 1084
Gasoline 16-speed 2WD
October 23 - November 3, 1971
Link: Nebraska Tractor Test 1084 file
PTO performance
Power at rated engine speed60.34 hp
45.0 kW
Fuel use5.5 gal/hour
20.8 l/hour
Power at rated PTO speed55.38 hp
41.3 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power49.03 hp
36.6 kW
Fuel use5.7 gal/hour
21.6 l/hour
Gear 5-Hi used for power test.
Max pull6,340 lbs
2875 kg
Gear 3-Lo used for pull test.
Nebraska Tractor Test 1085

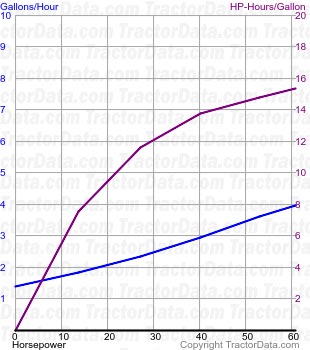

2030 fuel use from test 1085
Nebraska Tractor Test 1085
Diesel 16-speed 2WD
October 23 - November 4, 1971
Link: Nebraska Tractor Test 1085 file
PTO performance
Power at rated engine speed60.65 hp
45.2 kW
Fuel use4.0 gal/hour
15.1 l/hour
Power at rated PTO speed55.23 hp
41.2 kW
Fuel use3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power50.42 hp
37.6 kW
Fuel use4.0 gal/hour
15.1 l/hour
Gear 5-Hi used for power test.
Max pull6,472 lbs
2935 kg
Gear 3-Lo used for pull test.
