John Deere 830
| | 1973 - 1975 |
| Generation II Series | | Utility tractor |
|
Series map:
830
38.9hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Factories | Dubuque, Iowa, USA
|
| | Mannheim, Baden-Württemberg, Germany
|
| Original price was $6,150 in 1975 |
| Mechanical |
| Two-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Steering | power assist
|
| Differential hydraulic wet disc brakes |
| Open operator station. Two-post ROPS optional. |
| Capacity |
| Fuel | 10.5 gal
39.7 L
|
| Hydraulic system | 7.9 gal
29.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 7.9 gal
29.9 L
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 2010 lbs
911 kg
|
| Power Take-off (PTO) |
| Rear PTO | live *Two-stage clutch
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2100
|

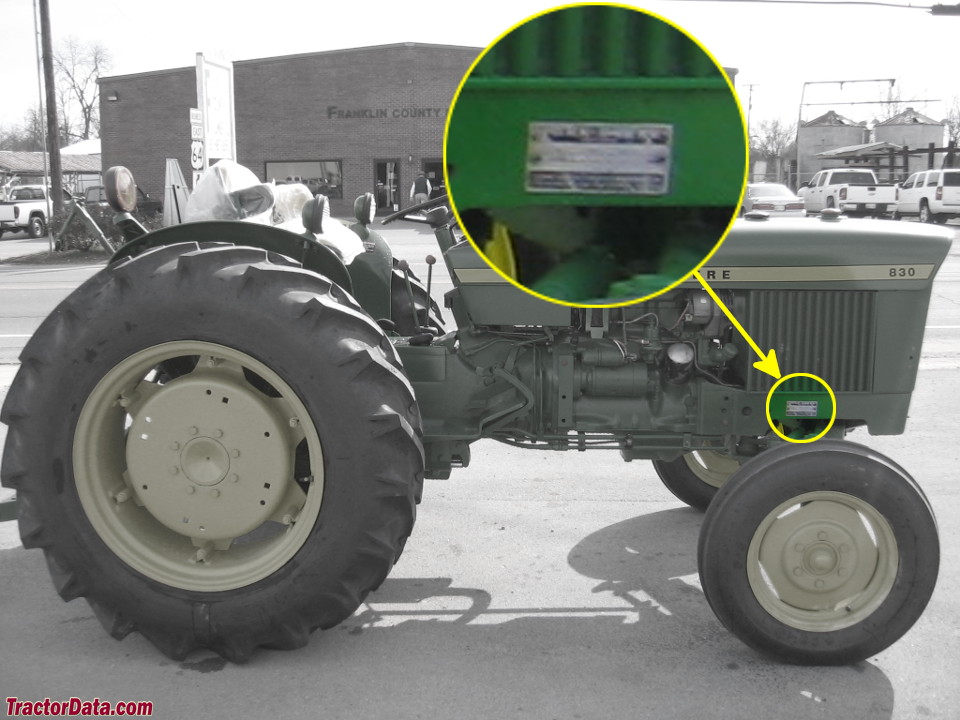

| 830 Serial Number Location |
 |
| Serial number plate on the front right of the main tractor frame. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 145 Loader (OMW21474) |
| John Deere 830 Tractor and Skid-Steer Loaders published in 1973 |
| Tractors 1918-1976 published by John Deere* |
| *Publication contains known errors. |
