| | 1973 - 1977 |
| Generation II Series | | Row-Crop tractor |
|
Series map:
4030
4230
88.9hp*
111.1hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed partially synchronized |
| 16-speed partial power shift |
| 13-speed creeper |
| Transmission |
| Transmission | John Deere Syncro-Range
|
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 64 qts
60.6 L
|
| Four shift stations with two gears each, plus reverse gear in the first two shift stations. Tractor must be stopped, and clutch used, to shift between stations. Once in a shift station the tractor may be shifted on the move, using the clutch, between the gears in that station. |

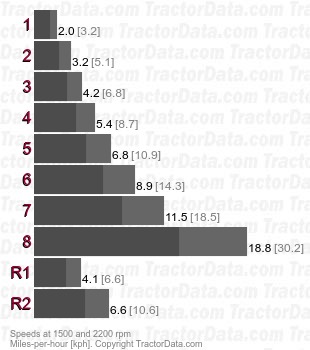

| Speeds |
| With 18.4-38 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | John Deere Quad-Range
|
| Type | partial power shift
|
| Gears | 16 forward and 6 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 64 qts
60.6 L
|
| Four gears (1-4) in four ranges (A-D). Power shift between gears 1-2 and 3-4 in each range with a synchronized shift (using clutch) between 2-3. Tractor must be stopped to shift range. |
| Shift Pattern |
 |
| Transmission |
| Transmission | Syncro-Range Creeper
|
| Type | creeper
|
| Gears | 13 forward and 4 reverse
|
| Optional creeper range adds additional speeds to the first five gears of the Syncro-Range transmission. An interlock prevents shifting into gears 6 through 8 while the creeper is engaged. |
| Shift Pattern |
 |
