Tractors > John Deere > 4030

John Deere 4030 Tests



John Deere 4030 tractor photo
1973 - 1977
Generation II Series
Row-Crop tractor
Series map:
4030
4230
88.9hp*
111.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1111

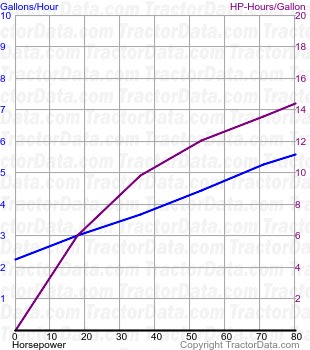

4030 fuel use from test 1111
Nebraska Tractor Test 1111
Diesel Quad-Range 2WD
October 9 - 13, 1972
Link: Nebraska Tractor Test 1111 file
PTO performance
Power at rated engine speed80.33 hp
59.9 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated PTO speed77.72 hp
58.0 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power67.03 hp
50.0 kW
Fuel use5.7 gal/hour
21.6 l/hour
Max pull7,512 lbs
3407 kg
