John Deere 7520 Transmission


John Deere 7520 tractor photo
1972 - 1975
Four-wheel Drive (4WD) tractor
Series map:
7020
7520
162.4hp*
194.4hp*
*Estimated engine power for comparison only.
Transmission options
8-speed partially synchronized
16-speed partially synchronized
Transmission
TransmissionSyncro-Range
Typepartially synchronized
Gears8 forward and 2 reverse
Oil capacity76 qts
71.9 L
Speeds

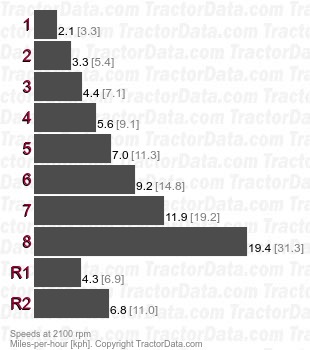

7520 Syncro-Range partially synchronized speeds
Transmission
TransmissionSyncro-Range Hi-Lo
Typepartially synchronized
Gears16 forward and 4 reverse
Oil capacity76 qts
71.9 L
Eight-speed Deere Synchro-Range transmission with added high and low gears.
Speeds

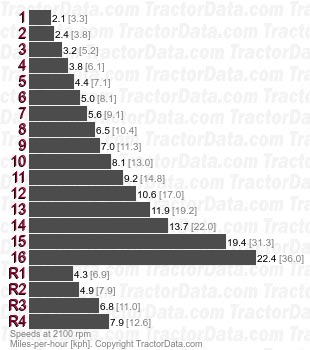

7520 Syncro-Range Hi-Lo partially synchronized speeds
