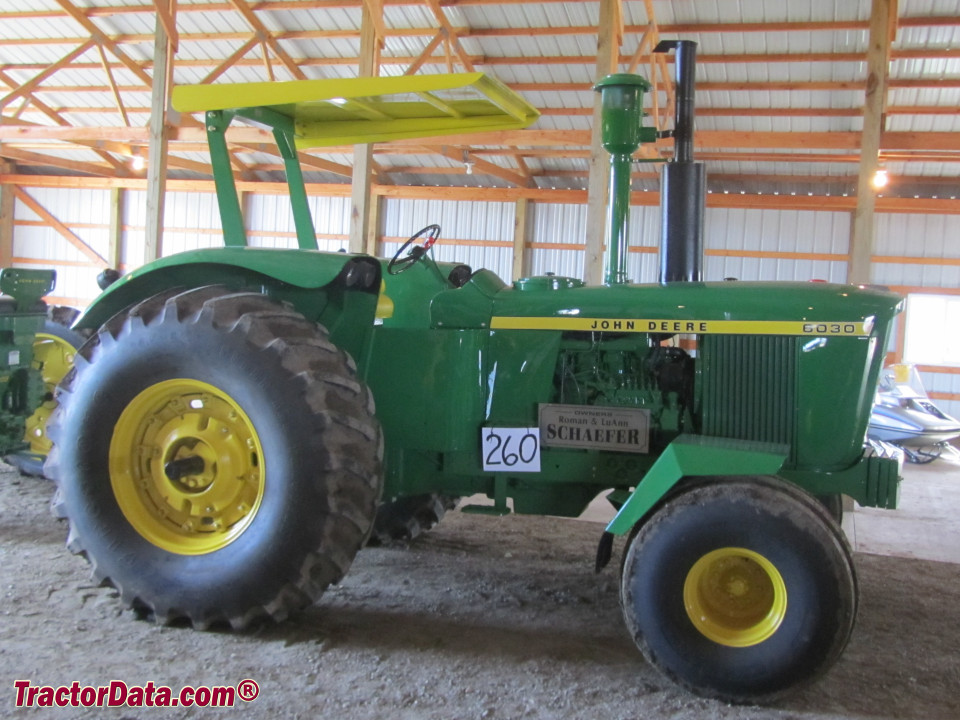

John Deere 6030
| | 1972 - 1977 |
| Generation II Series | | Row-Crop tractor |
|
Series map:
6030
194.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 4,028
|
| | 3,983 turbo
|
| | 45 natural
|
| Original price was $29,000 in 1977 |
| John Deere 6030 Power |
| PTO (claimed) | 175 hp (turbo)
130.5 kW
|
| | 141 hp (natural)
105.1 kW
|
| Drawbar (tested) | 148.70 hp
110.9 kW
|
| PTO (tested) | 175.99 hp
131.2 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Differential lock | hydraulic-actuated
|
| Power steering |
| Differential hydraulic wet disc brakes |
| Open operator station. Cab optional with air-conditioning available. |
| Capacity |
| Fuel | 73 gal
276.3 L
|
| Hydraulic system | 16 gal
60.6 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 16 gal
60.6 L
|
| Valves | 2
|
| Pump flow | 22 gpm
83.3 lpm
|
| Tractor hitch |
| Rear Type | III/II
|
| Rear lift | 5910 lbs
2680 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Engine RPM | 1000@2051
|

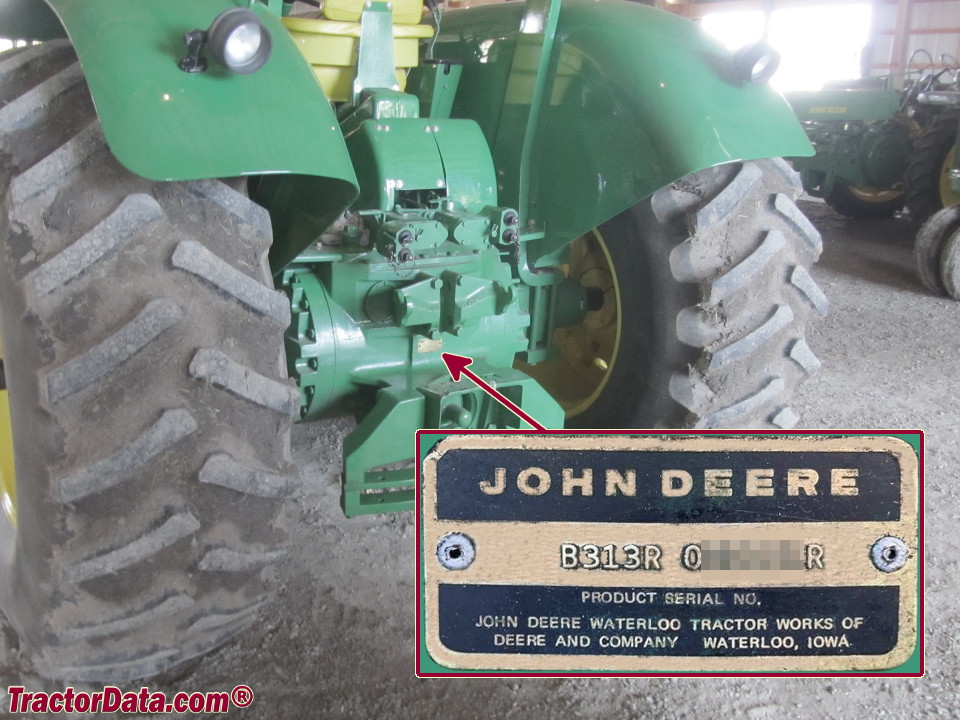

| 6030 Serial Number Location |
 |
| Serial number plate on the rear of the 6030, above the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 55
|
| | 78 OptOptional
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| The John Deere 20 Series New Generation Tractors by Benjamin Hain |
| Operator's Manual 6030 Tractor (OM-R55943) |
