John Deere 4620
| | 1971 - 1972 |
| Row-Crop tractor |
|
Series map:
4320
4620
127.8hp*
150.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 6,928
|
| | 5,045 (Syncro-Range)
|
| | 1,883 (Power Shift)
|
| Original price was $15,000 in 1972 |
| John Deere 4620 Power |
| PTO (claimed) | 135 hp
100.7 kW
|
| Drawbar (tested) | 115.75 hp
86.3 kW
|
| PTO (tested) | 135.76 hp
101.2 kW
|
 Performance test details ... |
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 HFWD 4WD
|
| Final drives | planetary
|
| Differential lock | hydro-mechanical rear
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Open operator station. Optional two-post Roll-Gard ROPS and canopy. Cab optional. |
| Capacity |
| Fuel | 50 gal
189.2 L
|
| Hydraulic system | 16 gal (Syncro)
60.6 L
|
| | 18 gal (Powershift)
68.1 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 16 gal (Syncro)
60.6 L
|
| | 18 gal (Powershift)
68.1 L
|
| Tractor hitch |
| Rear Type | III/II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Engine RPM | 1000@1900
|

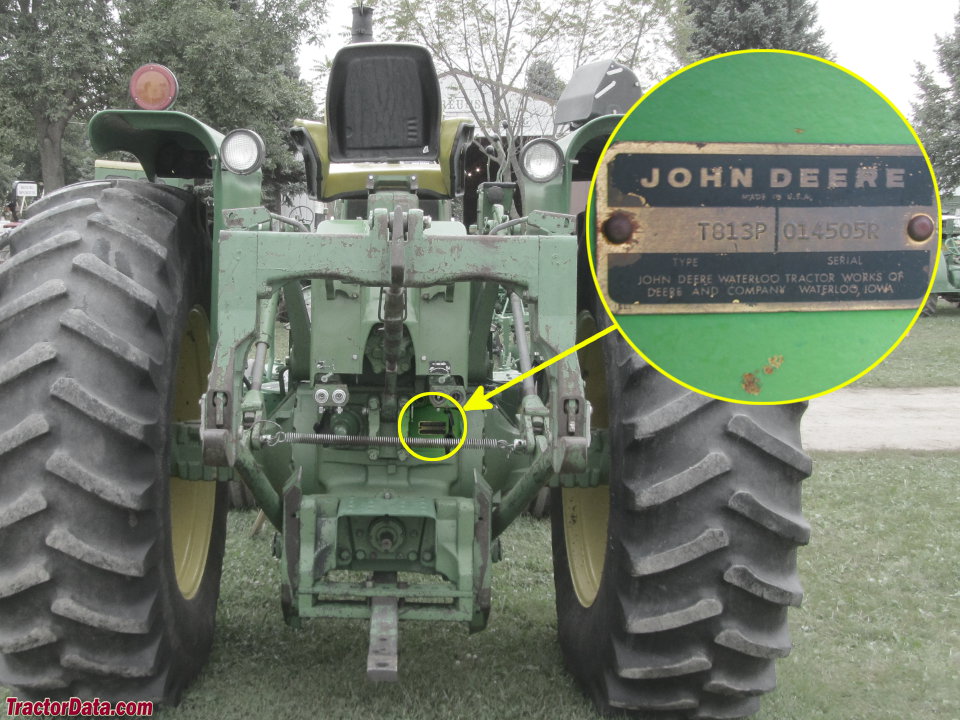

| 4620 Serial Number Location |
 |
| Serial number plate on the rear of the tractor, above the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| The John Deere 20 Series New Generation Tractors by Benjamin Hain |
| Operator's Manual 4620 Tractor (OM-R48272) published in 1982 |
