John Deere 4520 Tests


John Deere 4520 tractor photo
1969 - 1970
New Generation Series
Row-Crop tractor
Series map:
4520
133.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1014: diesel Power Shift 2WD
NTTL 1015: diesel Synchro-Range 2WD
Nebraska Tractor Test 1014

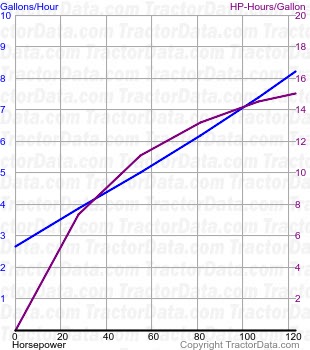

4520 fuel use from test 1014
Nebraska Tractor Test 1014
Diesel Power Shift 2WD
June 3 - 10, 1969
Link: Nebraska Tractor Test 1014 file
PTO performance
Power at rated engine speed122.36 hp
91.2 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated PTO speed115.44 hp
86.1 kW
Fuel use7.4 gal/hour
28.0 l/hour
Drawbar performance
Max power107.76 hp
80.4 kW
Fuel use8.0 gal/hour
30.3 l/hour
Gear 4 used for power test.
Max pull13,790 lbs
6255 kg
Nebraska Tractor Test 1015

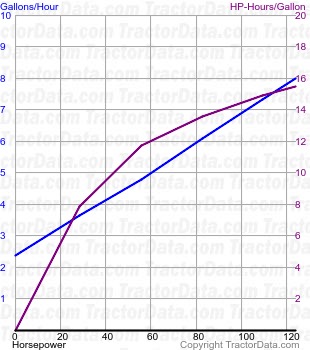

4520 fuel use from test 1015
Nebraska Tractor Test 1015
Diesel Synchro-Range 2WD
June 3 - 10, 1969
Link: Nebraska Tractor Test 1015 file
PTO performance
Power at rated engine speed123.39 hp
92.0 kW
Fuel use7.9 gal/hour
29.9 l/hour
Power at rated PTO speed115.22 hp
85.9 kW
Fuel use7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power111.21 hp
82.9 kW
Fuel use8.2 gal/hour
31.0 l/hour
Gear 4 used for power test.
Max pull13,221 lbs
5997 kg
Gear 2 used for pull test.
