John Deere 4000 Transmission


John Deere 4000 tractor photo
1969 - 1972
New Generation Series
Row-Crop tractor
Series map:
3020
4000
4020
72.5hp*
107.7hp*
101.3hp*
*Estimated engine power for comparison only.
Transmission options
8-speed partial synchronized
8-speed full power shift
Transmission
TransmissionJohn Deere Syncro-Range
Typepartial synchronized
Gears8 forward and 2 reverse
The 4000's Syncro-Range was modified from that used on the 4020, the reverse synchronizers were eliminated requiring the tractor to be stopped when shifting from forward to reverse. Shifts between the two forward gears in each of the shift stations are synchronized.
Speeds

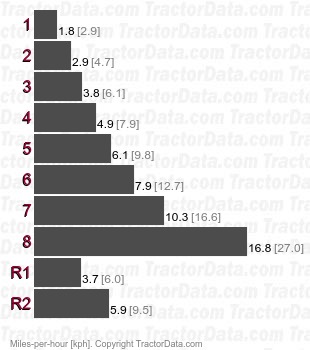

4000 Syncro-Range partial synchronized speeds
Shift Pattern
John Deere 4000 transmission controls
Transmission
TransmissionJohn Deere Power Shift
Typefull power shift
Gears8 forward and 4 reverse
Power Shift transmission available as an option on the John Deere 4000 starting in 1971.
