John Deere 820
| | 1968 - 1973 |
| Utility tractor |
|
Series map:
820
920
32.0hp
37.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| Original price | $4,000
|
| John Deere 820 Power |
| Engine | 32 hp
23.9 kW
|
| PTO (claimed) | 31 hp
23.1 kW
|
| Plows | 2-bottom integral
|
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear
|
| Open operator station. Two-post ROPS optional. |
| Capacity |
| Fuel | 16.5 gal
62.5 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 10 gal
37.9 L
|
| Power Take-off (PTO) |
| Rear PTO | live *Two-stage clutch
|
| Rear PTO Type | 540
|

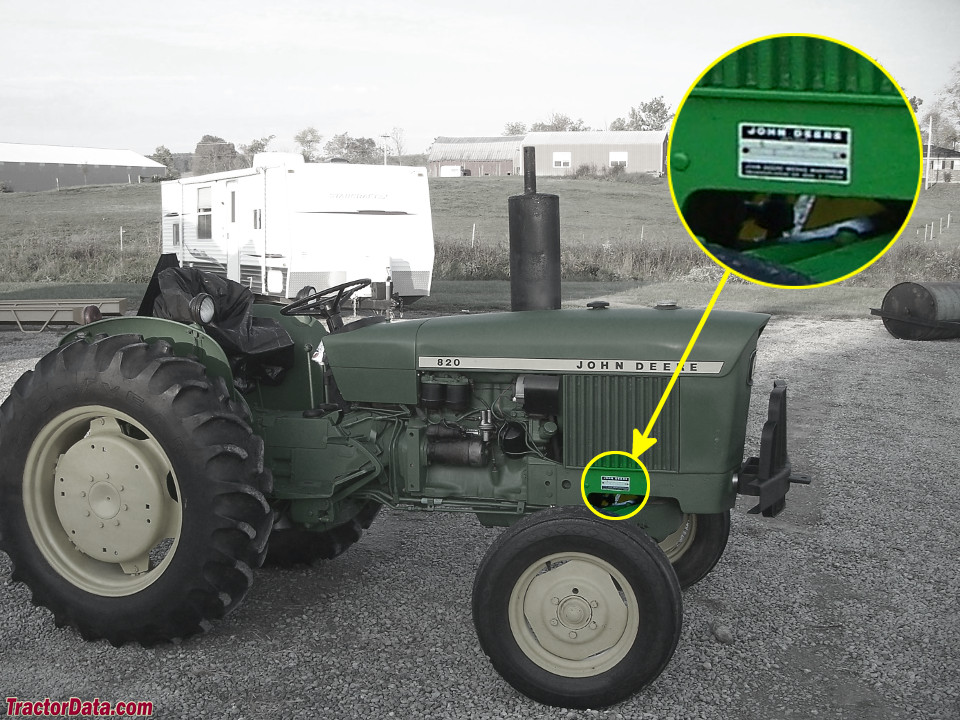

| 820 Serial Number Location |
 |
| Serial number plate is on the front-right on main the frame of the 820, above the front axle. |
| Electrical |
| Ground | negative
|
| Batteries | 2
|
| Battery volts | 12
|
| Battery AH | 55
|
| References |
 |
| The John Deere 20 Series New Generation Tractors by Benjamin Hain |
| Tractors 31 to 54 H.P. published in 1969, by John Deere* |
| John Deere 820 Tractor and Skid-Steer Loaders published in 1973 |
| *Publication contains known errors. |
 |
| Operator's Manual 145 Loader (OMW21474) |
| Operator's Manual 820 (OM-L 25150) |
| Operator's Manual 820 (OM-L 29340) |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 31, 2023 |
