John Deere 820 Transmission


John Deere 820 tractor photo
1968 - 1973
Utility tractor
Series map:
820
920
32.0hp
37.0hp
Transmission options
7-speed sliding gear
8-speed collar shift
Transmission
Typesliding gear
Gears7 forward and 1 reverse
Two-lever control. Left-hand range lever selects between I, II, reverse or parking. Not all tractors equipped with parking position. Right-range lever selects gear.
Shift Pattern
John Deere 820 transmission controls
Transmission
Typecollar shift
Gears8 forward and 4 reverse
Four gears with two ranges and reverse. The left-hand range lever selects between I, II, reverse or parking. Right-hand gear shift lever chooses one of four gears.

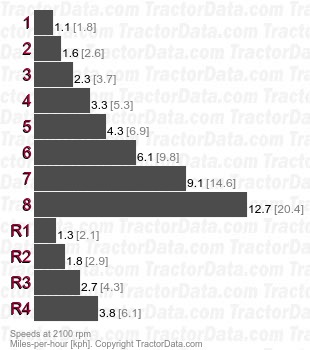

Speeds
With 13.6-28 rear tires.
820  collar shift speeds
Shift Pattern
John Deere 820 transmission controls
