John Deere 2510 Engine


John Deere 2510 tractor photo
1965 - 1968
Row-Crop tractor
Series map:
2510
53.6hp*
*Estimated engine power for comparison only.
Engine options
John Deere 3.0L 4-cyl gasoline
John Deere 3.3L 4-cyl diesel
Engine Detail
John Deere
gasoline
4-cylinder 8-valve
liquid-cooled inline valve-in-head
Displacement180.43 ci
3.0 L
Bore/Stroke3.86x3.86 inches
98 x 98 mm
Fuel systemcarburetor
Air cleanerdry
Compression7.5:1
Rated RPM2500
Idle RPM800-2650
Operating RPM1500-2500
Firing order1-3-4-2
Starter volts12
Coolant capacity14 qts
13.2 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.022 inches
0.559 mm
Engine Oil

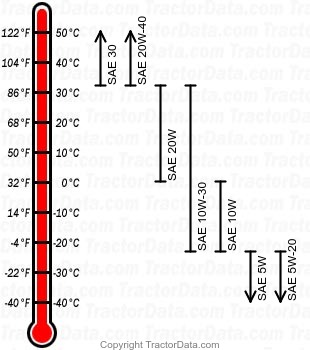

2510 gasoline engine oil chart
Oil capacity7 qts
6.6 L
Oil change200 h
Engine Detail
John Deere
diesel
4-cylinder 8-valve
liquid-cooled inline valve-in-head
Displacement202.68 ci
3.3 L
Bore/Stroke3.86x4.33 inches
98 x 110 mm
Air cleaneroil bath
Pre-heatingether injection
 block heater (optional)
Compression16.3:1
Rated RPM2500
Idle RPM800-2650
Operating RPM1500-2500
Firing order1-3-4-2
Starter volts12
Coolant capacity14 qts
13.2 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil
2510 diesel engine oil chart
Oil capacity7 qts
6.6 L
Oil change200 h
