| | 1965 - 1971 |
| New Generation Series | | Row-Crop tractor |
|
Series map:
1520
2020
3020
51.7hp*
59.9hp*
77.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed unsynchronized |
| 16-speed two-speed power shift |
| 8-speed power shuttle |
| Transmission |
| Transmission | John Deere collar shift
|
| Type | unsynchronized
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in two ranges (I/II) plus reverse (R) range. |

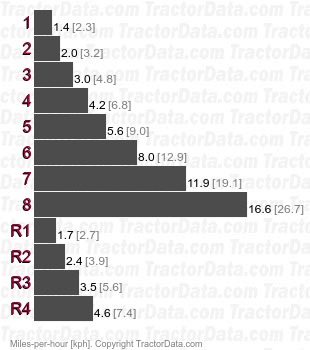

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash. |
| Transmission |
| Type | power shuttle
|
| Gears | 8 forward and 4 reverse
|
| Four gears (1-4) in two ranges (I/II) with left-hand reverser lever. Reverse only available in low (I) range. |
