John Deere 1020 Tests


John Deere 1020 tractor photo
1965 - 1973
New Generation Series
Utility tractor
Series map:
1020
1520
43.1hp*
51.7hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 935: gasoline 8-speed 2WD
NTTL 937: diesel 8-speed 2WD
Nebraska Tractor Test 935

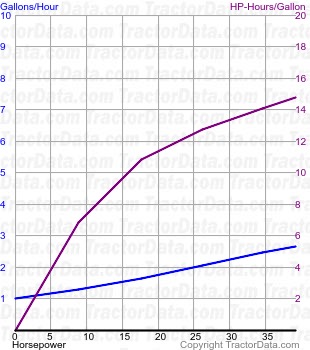

1020 fuel use from test 935
Nebraska Tractor Test 935
Gasoline 8-speed 2WD
May 2 - 14, 1966
Link: Nebraska Tractor Test 935 file
PTO performance
Power at rated engine speed38.82 hp
28.9 kW
Fuel use3.7 gal/hour
14.0 l/hour
Power at rated PTO speed35.61 hp
26.6 kW
Fuel use3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power31.64 hp
23.6 kW
Fuel use3.5 gal/hour
13.2 l/hour
Gear 5 used for power test.
Max pull4,246 lbs
1925 kg
Gear 3 used for pull test.
Nebraska Tractor Test 937

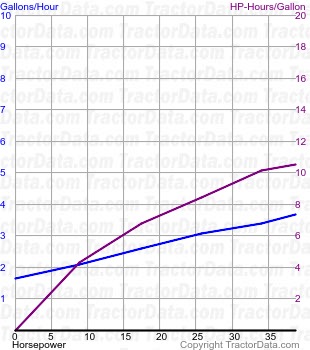

1020 fuel use from test 937
Nebraska Tractor Test 937
Diesel 8-speed 2WD
May 6 - 17, 1966
Link: Nebraska Tractor Test 937 file
PTO performance
Power at rated engine speed38.92 hp
29.0 kW
Fuel use2.6 gal/hour
9.8 l/hour
Power at rated PTO speed36.02 hp
26.9 kW
Fuel use2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power31.81 hp
23.7 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 5 used for power test.
Max pull4,200 lbs
1905 kg
Gear 3 used for pull test.
