Tractors > John Deere > 3020

John Deere 3020 Tests



John Deere 3020 tractor photo
1964 - 1972
Model year
New Generation Series
Row-Crop tractor
Series map:
2020
3020
59.9hp*
77.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 848: diesel Powershift 2WD
NTTL 851: gasoline Powershift 2WD
NTTL 852: LP gas Powershift 2WD
NTTL 940: diesel Syncro-Range 2WD
NTTL 941: gasoline Syncro-Range 2WD
NTTL 942: LP gas Syncro-Range 2WD
Nebraska Tractor Test 848

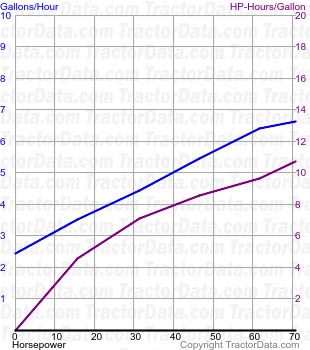

3020 fuel use from test 848
Nebraska Tractor Test 848
Diesel Powershift 2WD
September 23 - October 2, 1963
Link: Nebraska Tractor Test 848 file
PTO performance
Power at rated engine speed65.28 hp
48.7 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed59.25 hp
44.2 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power54.77 hp
40.8 kW
Fuel use5.0 gal/hour
18.9 l/hour
Gear 4 used for power test.
Max pull7536 lbs
3418 kg
Gear 2 used for pull test.
Nebraska Tractor Test 851

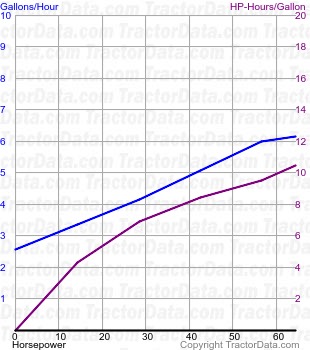

3020 fuel use from test 851
Nebraska Tractor Test 851
Gasoline Powershift 2WD
September 30 - October 7, 1963
Link: Nebraska Tractor Test 851 file
PTO performance
Power at rated engine speed64.14 hp
47.8 kW
Fuel use6.2 gal/hour
23.5 l/hour
Power at rated PTO speed59.33 hp
44.2 kW
Fuel use5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power54.60 hp
40.7 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 4 used for power test.
Max pull7,621 lbs
3456 kg
Gear 2 used for pull test.
Nebraska Tractor Test 852

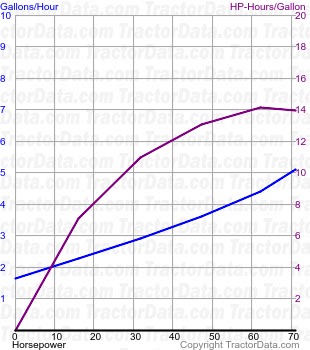

3020 fuel use from test 852
Nebraska Tractor Test 852
LP gas Powershift 2WD
October 2 - 11, 1963
Link: Nebraska Tractor Test 852 file
PTO performance
Power at rated engine speed64.70 hp
48.2 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated PTO speed56.34 hp
42.0 kW
Fuel use6.4 gal/hour
24.2 l/hour
Drawbar performance
Max power54.50 hp
40.6 kW
Fuel use7.7 gal/hour
29.1 l/hour
Gear 4 used for power test.
Max pull7,725 lbs
3504 kg
Gear 2 used for pull test.
Nebraska Tractor Test 940

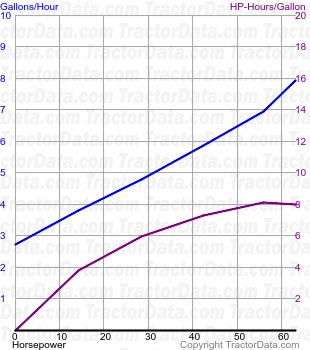

3020 fuel use from test 940
Nebraska Tractor Test 940
Diesel Syncro-Range 2WD
May 17 - 25, 1966
Link: Nebraska Tractor Test 940 file
PTO performance
Power at rated engine speed71.26 hp
53.1 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed64.32 hp
48.0 kW
Fuel use4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power61.47 hp
45.8 kW
Fuel use4.9 gal/hour
18.5 l/hour
Gear 4 used for power test.
Max pull7596 lbs
3445 kg
Gear 2 used for pull test.
Nebraska Tractor Test 941

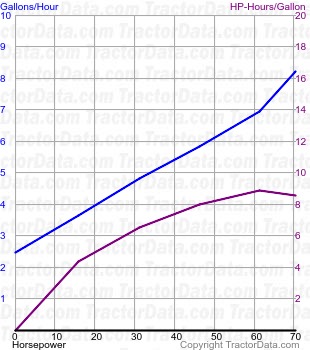

3020 fuel use from test 941
Nebraska Tractor Test 941
Gasoline Syncro-Range 2WD
May 31 - June 7, 1966
Link: Nebraska Tractor Test 941 file
PTO performance
Power at rated engine speed70.59 hp
52.6 kW
Fuel use6.6 gal/hour
25.0 l/hour
Power at rated PTO speed64.74 hp
48.3 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power61.38 hp
45.8 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 4 used for power test.
Max pull7558 lbs
3428 kg
Gear 2 used for pull test.
Nebraska Tractor Test 942

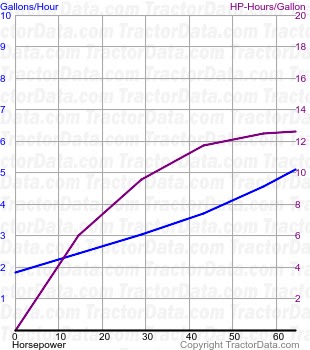

3020 fuel use from test 942
Nebraska Tractor Test 942
LP gas Syncro-Range 2WD
May 31 - June 8, 1966
Link: Nebraska Tractor Test 942 file
PTO performance
Power at rated engine speed70.66 hp
52.7 kW
Fuel use8.2 gal/hour
31.0 l/hour
Power at rated PTO speed62.88 hp
46.9 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power63.13 hp
47.1 kW
Fuel use8.1 gal/hour
30.7 l/hour
Gear 4 used for power test.
Max pull7680 lbs
3483 kg
Gear 2 used for pull test.
