John Deere 4010
| | 1960 - 1963 |
| New Generation Series | | Row-Crop tractor |
|
Series map:
3010
4010
66.0hp*
88.9hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Factories | Waterloo, Iowa, USA
|
| | Mexico
|
| Original price was $5,500 in 1963 |
| Mechanical |
| Two-wheel drive |
| Steering | power assist
|
| Differential hydraulic wet disc brakes |
| Open operator station. |
| Hydraulics |
| Type | closed center
|
| Valves | 2
|
| Pump flow | 13 gpm
49.2 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Mid PTO | independent
|
| Mid PTO Type | 1000 (1.375)
|

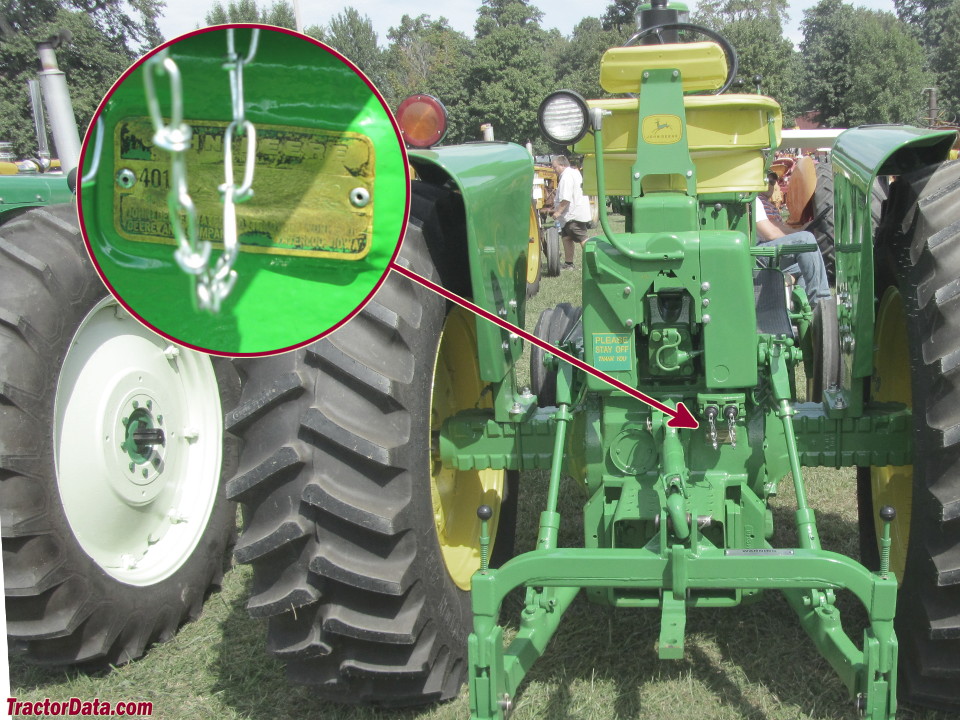

| 4010 Serial Number Location |
 |
| Serial number plate on the rear of the tractor, above the PTO shaft. |
| Electrical |
| Ground | positive (12V)
|
| | floating (24V)
|
| Batteries | 1 (gas)
|
| | 2 (diesel)
|
| Battery volts | 12
|
| References |
 |
| The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing |
| New 3010-4010 Row-Crop... 3010 Row-Crop utility Tractors published in 1960, by John Deere |
| New 3010 and 4010 Standard Tractors published in 1960, by John Deere |
| Tractors 1918-1976 published by John Deere* |
| Modern Farming published in 1962, by John Deere |
| *Publication contains known errors. |
