Tractors > John Deere > 4010

John Deere 4010 Tests



John Deere 4010 tractor photo
1960 - 1963
New Generation Series
Row-Crop tractor
Series map:
3010
4010
61.2hp*
88.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 759: gasoline 8-speed 2WD
NTTL 760: LP gas 8-speed 2WD
NTTL 761: diesel 8-speed 2WD
Nebraska Tractor Test 759

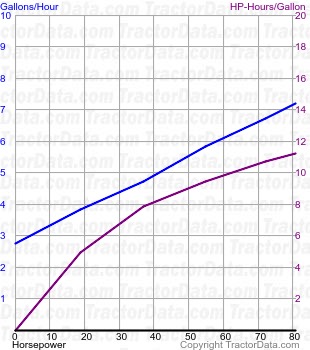

4010 fuel use from test 759
Nebraska Tractor Test 759
Gasoline 8-speed 2WD
September 12 - 23, 1960
Link: Nebraska Tractor Test 759 file
PTO performance
Power at rated engine speed80.86 hp
60.3 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed73.91 hp
55.1 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power71.25 hp
53.1 kW
Fuel use7.1 gal/hour
26.9 l/hour
Gear 5 used for power test.
Max pull7,055 lbs
3200 kg
Gear 3 used for pull test.
Nebraska Tractor Test 760

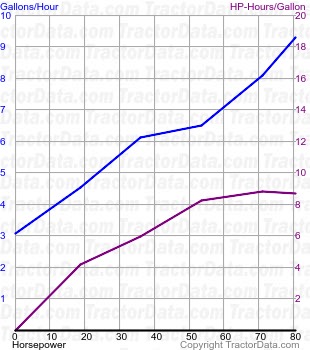

4010 fuel use from test 760
Nebraska Tractor Test 760
LP gas 8-speed 2WD
September 12 - 23, 1960
Link: Nebraska Tractor Test 760 file
PTO performance
Power at rated engine speed80.60 hp
60.1 kW
Fuel use9.2 gal/hour
34.8 l/hour
Power at rated PTO speed72.82 hp
54.3 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power71.77 hp
53.5 kW
Fuel use9.1 gal/hour
34.4 l/hour
Gear 5 used for power test.
Max pull6,741 lbs
3057 kg
Gear 3 used for pull test.
Nebraska Tractor Test 761

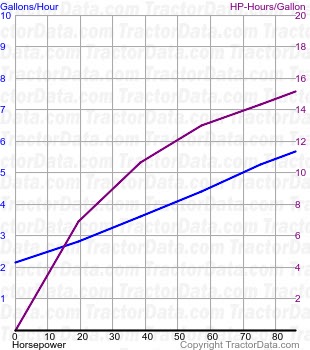

4010 fuel use from test 761
Nebraska Tractor Test 761
Diesel 8-speed 2WD
September 19 - 23, 1960
Link: Nebraska Tractor Test 761 file
PTO performance
Power at rated engine speed84.00 hp
62.6 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated PTO speed76.71 hp
57.2 kW
Fuel use4.9 gal/hour
18.5 l/hour
Drawbar performance
Max power71.93 hp
53.6 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 5 used for power test.
Max pull7,002 lbs
3176 kg
Gear 3 used for pull test.
