John Deere 3010 Transmission


John Deere 3010 tractor photo
1961 - 1963
New Generation Series
Row-Crop tractor
Series map:
2010
3010
4010
51.9hp*
61.2hp*
88.9hp*
*Estimated engine power for comparison only.
Transmission
TransmissionJohn Deere Syncro-Range
Typepartially synchronized
Gears8 forward and 3 reverse
Clutchdry disc
Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1, 2, and 3) by using the clutch.

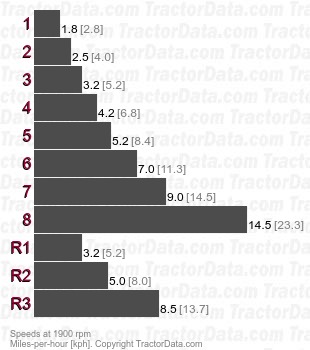

Speeds
3010 Syncro-Range partially synchronized speeds
Shift Pattern
John Deere 3010 transmission controls
