John Deere 2010C

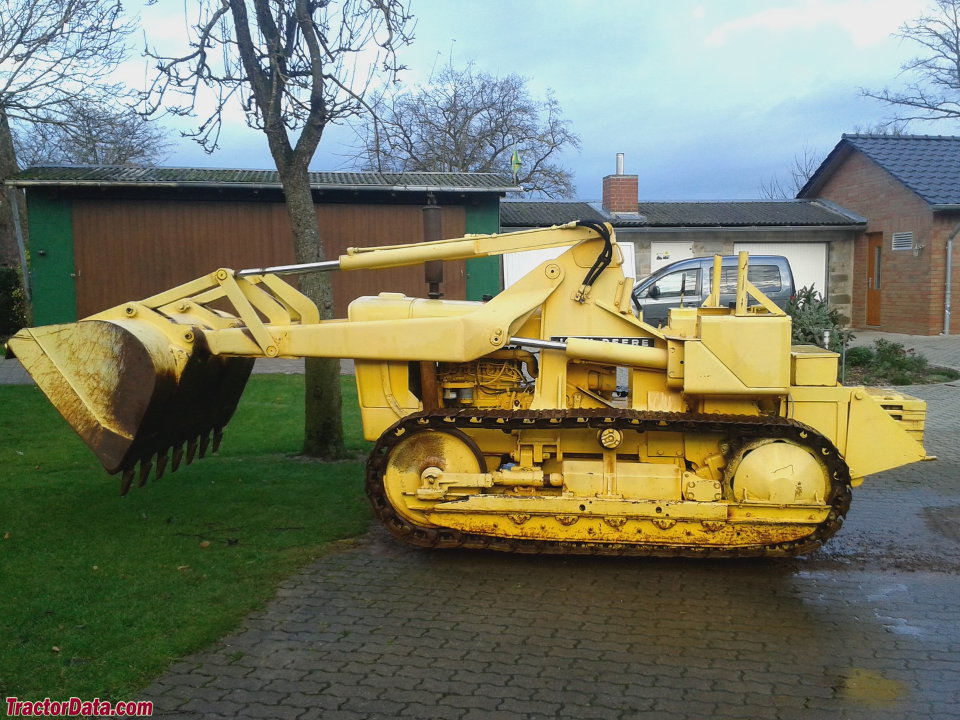

John Deere 2010C tractor photo
1960 - 1965
Agricultural Crawler tractor
Production
ManufacturerJohn Deere
Agricultural Crawler tractor
Built in Dubuque, Iowa, USA
Variants
2010ag tractor
2010Cag crawler
2010 Wheelindustrial tractor
John Deere 2010C Engines
John Deere 2.4L 4-cyl gasoline
John Deere 2.7L 4-cyl diesel
John Deere 2.4L 4-cyl LP gas
Engine details ...
John Deere 2010C Power
PTO (claimed)47.45 hp
35.4 kW
Drawbar (tested)39.08 hp
29.1 kW
PTO (tested)47.72 hp
35.6 kW
Performance test details ...
Mechanical
Drivecrawler
Steeringmultiple disc clutches
Contracting band brakes
Open operator station. Optional ROPS canopy.
Power Take-off (PTO)
Rear PTO Type540,1000
Dimensions & Tracks
Weight8387 to 9645 pounds
14-inch tracks
Full dimensions and tracks ...
2010C Serial Numbers
Location:Serial number on the right side of the engine. below the alternator.
196010001
196110999
196221087
196331250
196444036
196558186

FAQ: How to read a serial number table.
Electrical
Groundpositive
Battery volts12
References
2010C references literature
The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing
Operator's Manual 2010 Crawler Tractors (OM-T14693)
Tractors 1918-1976 published by John Deere*
Modern Farming published in 1962, by John Deere
Modern Farming published in 1965, by John Deere
*Publication contains known errors.
