John Deere 2010C Tests


John Deere 2010C tractor photo
1960 - 1965
Agricultural Crawler tractor
Tractor Tests
NTTL 829: gasoline 8-speed crawler
NTTL 830: diesel 8-speed crawler
Nebraska Tractor Test 829

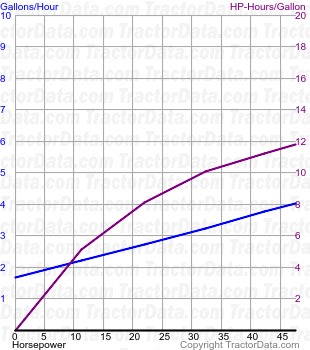

2010C fuel use from test 829
Nebraska Tractor Test 829
Gasoline 8-speed crawler
October 19 - 31, 1962
Link: Nebraska Tractor Test 829 file
PTO performance
Power at rated engine speed47.45 hp
35.4 kW
Fuel use4.0 gal/hour
15.1 l/hour
Power at rated PTO speed38.57 hp
28.8 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power38.86 hp
29.0 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 3 used for power test.
Max pull10,093 lbs
4578 kg
Gear 1 used for pull test.
Nebraska Tractor Test 830

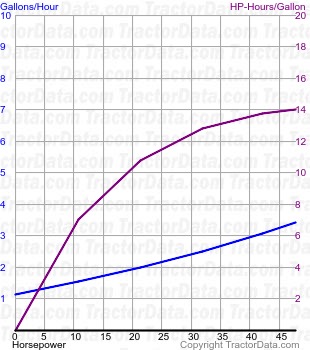

2010C fuel use from test 830
Nebraska Tractor Test 830
Diesel 8-speed crawler
October 23 - 31, 1962
Link: Nebraska Tractor Test 830 file
PTO performance
Power at rated engine speed47.72 hp
35.6 kW
Fuel use3.4 gal/hour
12.9 l/hour
Power at rated PTO speed47.72 hp
35.6 kW
Fuel use3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power39.08 hp
29.1 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 3 used for power test.
Max pull10,283 lbs
4664 kg
Gear 1 used for pull test.
