John Deere 2010 Tests


John Deere 2010 tractor photo
1960 - 1965
New Generation Series
Row-Crop tractor
Series map:
1010
2010
3010
40.1hp*
51.9hp*
61.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 799: diesel 8-speed 2WD
NTTL 800: gasoline 8-speed 2WD
Nebraska Tractor Test 799

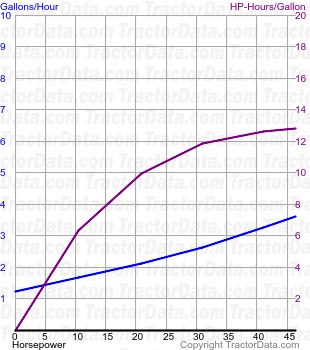

2010 fuel use from test 799
Nebraska Tractor Test 799
Diesel 8-speed 2WD
June 6 - 22, 1961
Link: Nebraska Tractor Test 799 file
PTO performance
Power at rated engine speed46.67 hp
34.8 kW
Fuel use3.7 gal/hour
14.0 l/hour
Power at rated PTO speed38.64 hp
28.8 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power39.28 hp
29.3 kW
Fuel use3.6 gal/hour
13.6 l/hour
Gear 3 used for power test.
Max pull4,553 lbs
2065 kg
Gear 1 used for pull test.
Nebraska Tractor Test 800

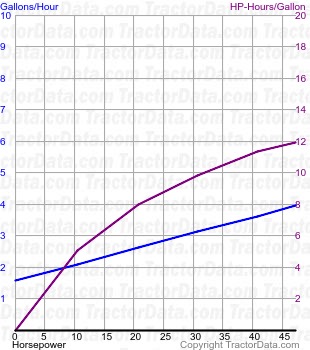

2010 fuel use from test 800
Nebraska Tractor Test 800
Gasoline 8-speed 2WD
June 13 - 22, 1961
Link: Nebraska Tractor Test 800 file
PTO performance
Power at rated engine speed46.86 hp
34.9 kW
Fuel use4.0 gal/hour
15.1 l/hour
Power at rated PTO speed38.45 hp
28.7 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power39.12 hp
29.2 kW
Fuel use3.9 gal/hour
14.8 l/hour
Gear 3 used for power test.
Max pull4,596 lbs
2084 kg
Gear 1 used for pull test.
