John Deere 1010C Tests


John Deere 1010C tractor photo
1960 - 1964
Agricultural Crawler tractor
Tractor Tests
NTTL 798: diesel 4-speed crawler
NTTL 801: gasoline 4-speed crawler
Nebraska Tractor Test 798

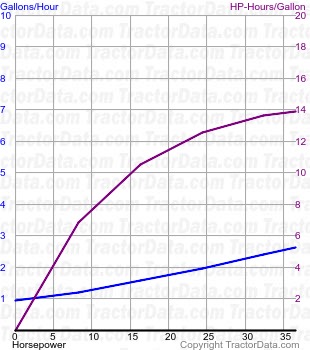

1010C fuel use from test 798
Nebraska Tractor Test 798
Diesel 4-speed crawler
June 5 - 13, 1961
Link: Nebraska Tractor Test 798 file
PTO performance
Power at rated engine speed36.31 hp
27.1 kW
Fuel use2.6 gal/hour
9.8 l/hour
Power at rated PTO speed24.82 hp
18.5 kW
Fuel use1.7 gal/hour
6.4 l/hour
Drawbar performance
Max power28.71 hp
21.4 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 3 used for power test.
Max pull7,484 lbs
3394 kg
Gear 1 used for pull test.
Nebraska Tractor Test 801

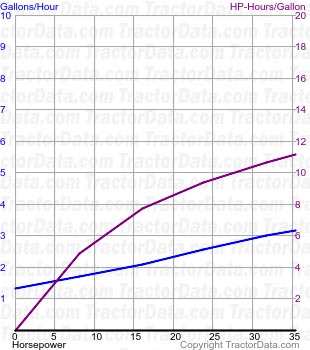

1010C fuel use from test 801
Nebraska Tractor Test 801
Gasoline 4-speed crawler
June 13 - 19, 1961
Link: Nebraska Tractor Test 801 file
PTO performance
Power at rated engine speed35.93 hp
26.8 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed22.55 hp
16.8 kW
Fuel use1.9 gal/hour
7.2 l/hour
Drawbar performance
Max power27.38 hp
20.4 kW
Fuel use3.2 gal/hour
12.1 l/hour
Gear 3 used for power test.
Max pull7,179 lbs
3256 kg
Gear 1 used for pull test.
