John Deere 435
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Factories | Dubuque, Iowa, USA |
| Monterrey, Mexico | |
| Total built | 4,626 |
| Original price was $3,000 in 1960 | |
| The 435 was the first John Deere tractor released after the new PTO standards were adopted in 1958. It was also the first Deere tractor to have its horsepower rated in terms of PTO after Nebraska dropped the belt test in 1959. | |
| John Deere 435 Engine | |
| General Motors 1.7L 2-cyl diesel | |
| Fuel tank | 10.5 gal 39.7 L |
 Engine details ... | |
| John Deere 435 Transmissions | |
| 4-speed gear | |
| 5-speed gear | |
 Transmission details ... |
| John Deere 435 Power | |
| Plows | 2-3 |
| Drawbar (tested) | 27.59 hp 20.6 kW |
| PTO (tested) | 32.91 hp 24.5 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| power optional after 1960 (SN 436452) | |
| Differential mechanical dry disc brakes | |
| Open operator station. | |

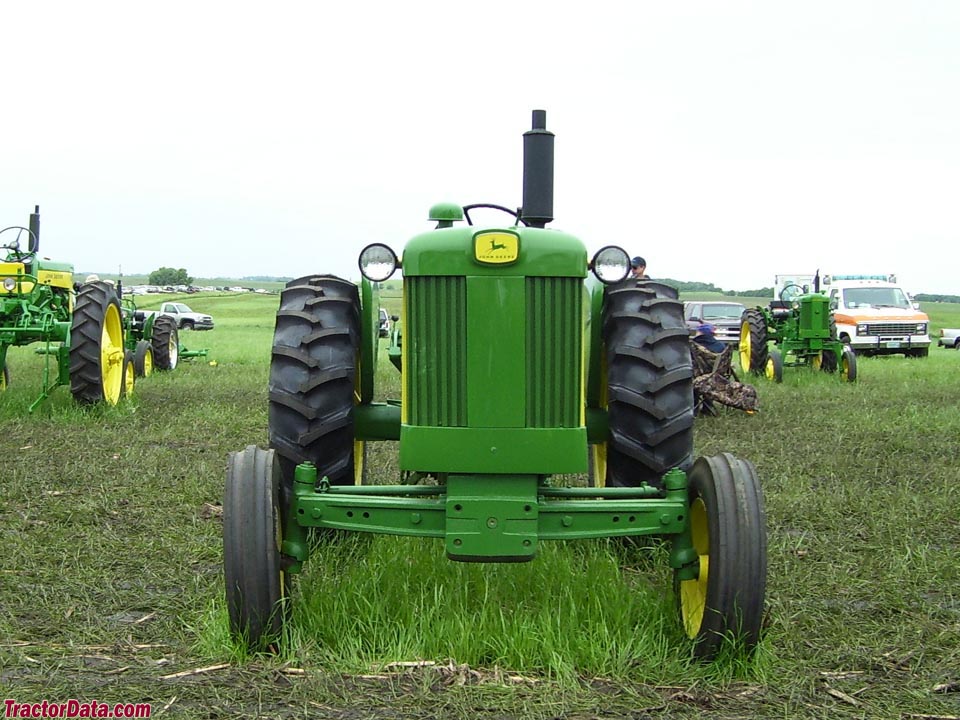

| Photos | |
 | |
 John Deere 435 photos... | |
| Hydraulics | |
| Type | open center |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO | transmision |
| live *Optional with 5-speed transmission. | |
| Rear PTO Type | 540 (1.375) |
| 540/1000 (1.375) | |
| Dimensions & Tires | |
| Wheelbase | 85 inches 215 cm |
| Weight | 3200 lbs 1451 kg |
| Front tire | 5.00-15 |
| Rear tire | 10-34 |
 Full dimensions and tires ... | |
| 435 Serial Numbers | |
| Location: | Serial number plate below the tractor's instrument panel. |
| 1959 | 435001 |
| 1960 | 435961 |
| End | 439626 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| The John Deere 30 Series by J.R. Hobbs | |
| Operator's Manual 435 Diesel Tractor (OM-T78-359) published in 1958 | |
| Tractors 1918-1976 published by John Deere* | |
| *Publication contains known errors. |
