John Deere 830
| | 1958 - 1961 |
| Two-Cylinder 30 Series | | Standard-tread tractor |
|
Series map:
730
830
65.6hp*
75.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Standard-tread tractor |
| Factories | Waterloo, Iowa, USA
|
| | Monterrey, Mexico
|
| Total built | 6715
|
| For starting, the 830 offered a 4-cylinder gasoline pony engine, or a 24-volt electric start. |
| John Deere 830 Power |
| Drawbar (claimed) | 69.66 hp
51.9 kW
|
| Belt (claimed) | 75.6 hp
56.4 kW
|
| Plows | 6
|
| Drawbar (tested) | 67.15 hp
50.1 kW
|
| Belt (tested) | 72.82 hp
54.3 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Final drives | bull gear
|
| Steering | hydraulic power
|
| Mechanical expanding shoe brakes |
| open operator station. Steel cab available. |
| Hydraulics |
| Type | open center
|
| Valves | 1 or 2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 536@1125
|

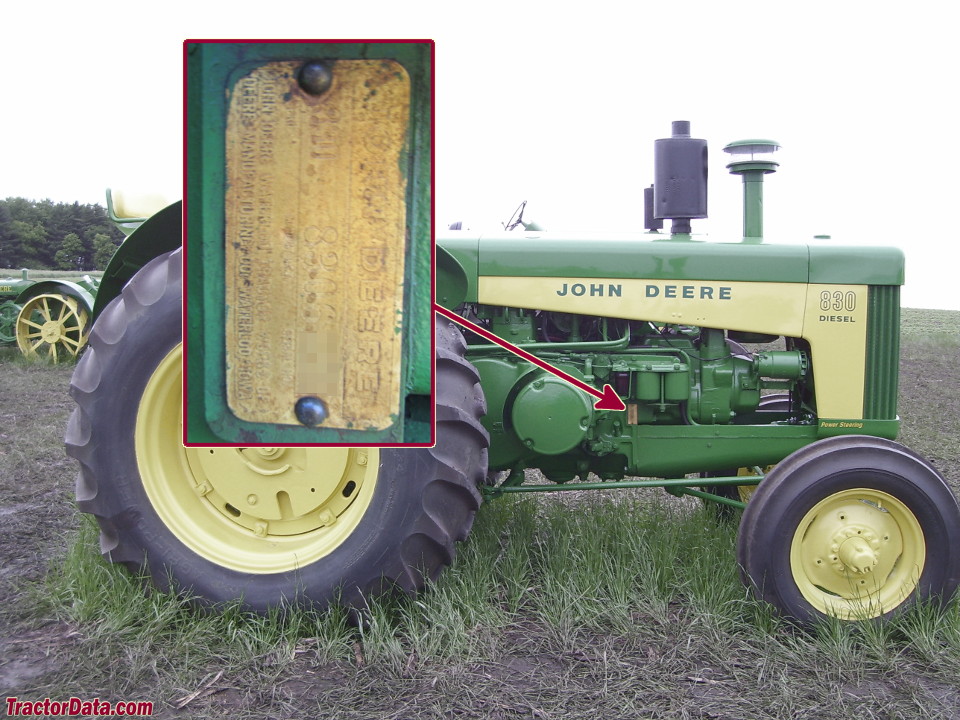

| 830 Serial Number Location |
 |
| Serial number plate on the right side of the 830 frame, ahead of the pulley. |
| Belt Pulley |
| Diameter | 12.2 inches
30 cm
|
| Width | 9 inches
22 cm
|
| RPM | 1125
|
| Speed | 3600 ft/min
1097.28 meters/min
|
| Electrical |
| Ground | positive
|
| Batteries | 1 (pony)
|
| | 4 (electric-start)
|
| Battery volts | 6
|
| References |
 |
| The John Deere 30 Series by J.R. Hobbs |
| New 830 Diesel - Economical power for large-acreage grain and rice operations published in 1958, by John Deere |
| Operator's Manual 830 Series Tractors with gasoline cranking engine (OM-R20688) published in 1958 |
| Operator's Manual 830 Series Tractors with electric starting (OM-R20820) published in 1958 |
| Tractors 1918-1976 published by John Deere* |
| *Publication contains known errors. |
