John Deere 630
| | 1958 - 1960 |
| Two-Cylinder 30 Series | | Row-Crop tractor |
|
Series map:
530
630
730
41.4hp*
53.3hp*
65.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Factories | Waterloo, Iowa, USA
|
| | Monterrey, Mexico
|
| Total built | 17,307
|
| Original price was $2,955 in 1958 |
| The John Deere model 630 was available in row-crop, standard, orchard, and high-crop variants. |
| John Deere 630 Engines |
| John Deere 5.0L 2-cyl gasoline |
| John Deere 5.0L 2-cyl all-fuel |
| John Deere 5.0L 2-cyl LP gas |
| Fuel tank | 20.5 gal (all-fuel)
77.6 L
|
| | 22.25 gal (gasoline)
84.2 L
|
| | 33 gal (LP gas)
124.9 L
|
| Aux. fuel | 1 gal
3.8 L
|
 Engine details ... |
| John Deere 630 Power |
| Drawbar (claimed) | 44 hp
32.8 kW
|
| PTO (claimed) | 48 hp
35.8 kW
|
| Plows | 4
|
| Drawbar (tested) | 44.81 hp
33.4 kW
|
| Belt (tested) | 49.19 hp
36.7 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| Steering | power OptOptional
|
| Differential mechanical drum brakes |
| Open operator station. |
| Hydraulics |
| Pressure | 1200 psi
82.7 bar
|
| Valves | 1 or 2
|
| Pump flow | 8.9 gpm
33.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|

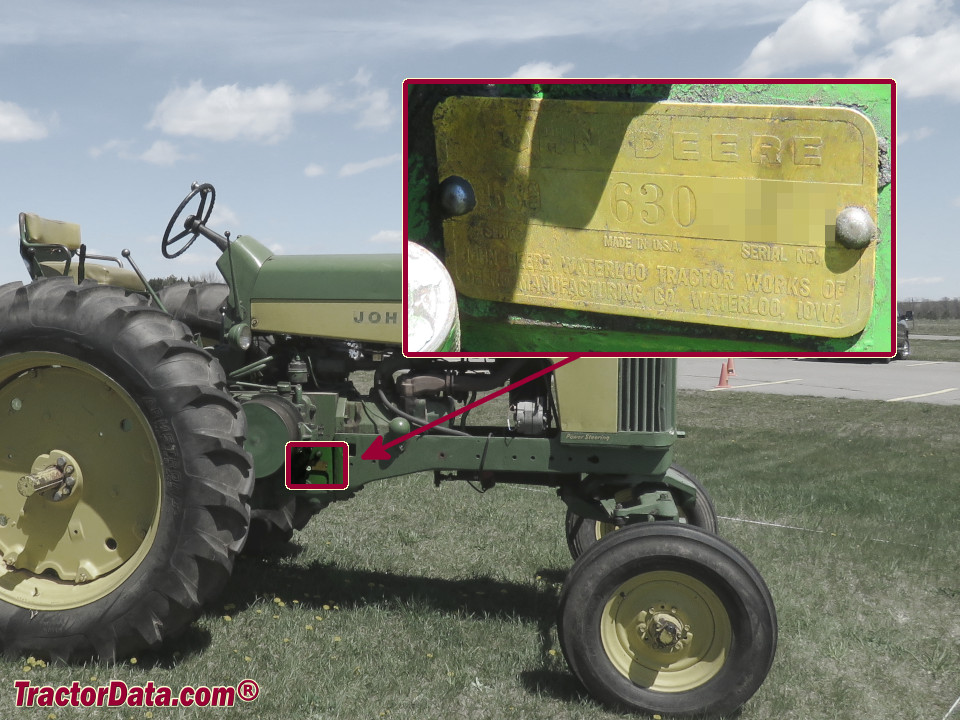

| 630 Serial Number Location |
 |
| Serial number plate on the right side of the 630 tractor frame, below the belt pulley. |
| Electrical |
| Ground | positive
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| The John Deere 30 Series by J.R. Hobbs |
| Operator's Manual 630 (OM-R20718R) published in 1958 |
| Tractors 1918-1976 published by John Deere* |
| New 530 - 630 - 730 Tractors published in 1958, by John Deere |
| *Publication contains known errors. |
