Tractors > John Deere > 820

John Deere 820 Tests



John Deere 820 tractor photo
1956 - 1958
Two-Cylinder 20 Series
Standard-tread tractor
Series map:
720
820
65.6hp*
74.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 632

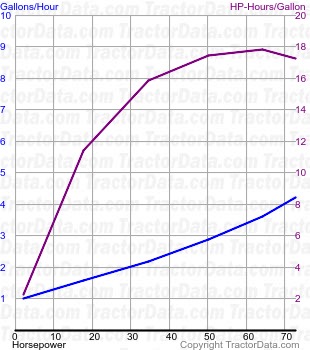

820 fuel use from test 632
Nebraska Tractor Test 632
Diesel 6-speed 2WD
October 14 - 18, 1957
Link: Nebraska Tractor Test 632 file
Belt power (max)72.82 hp
54.3 kW
Belt fuel use (max)4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power67.15 hp
50.1 kW
Gear 3 used for power test.
Max pull8,667 lbs
3931 kg
Gear 1 used for pull test.
