John Deere 320
| | 1956 - 1958 |
| Utility tractor |
|
Series map:
320
420
23.9hp*
31.5hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Dubuque, Iowa, USA |
| Total built | 3,084 (total)
|
| | 917 (320U)
|
| | 2,167 (320S)
|
| Original price was $1,900 in 1960 |
| Variants |
| 320S | Standard-front
|
| 320U | Utility
|
| 320V | Southern Special
|
| John Deere 320 Power |
| Belt (claimed) | 21.5 hp
16.0 kW
|
| Plows | 2
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Open operator station |
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540
|

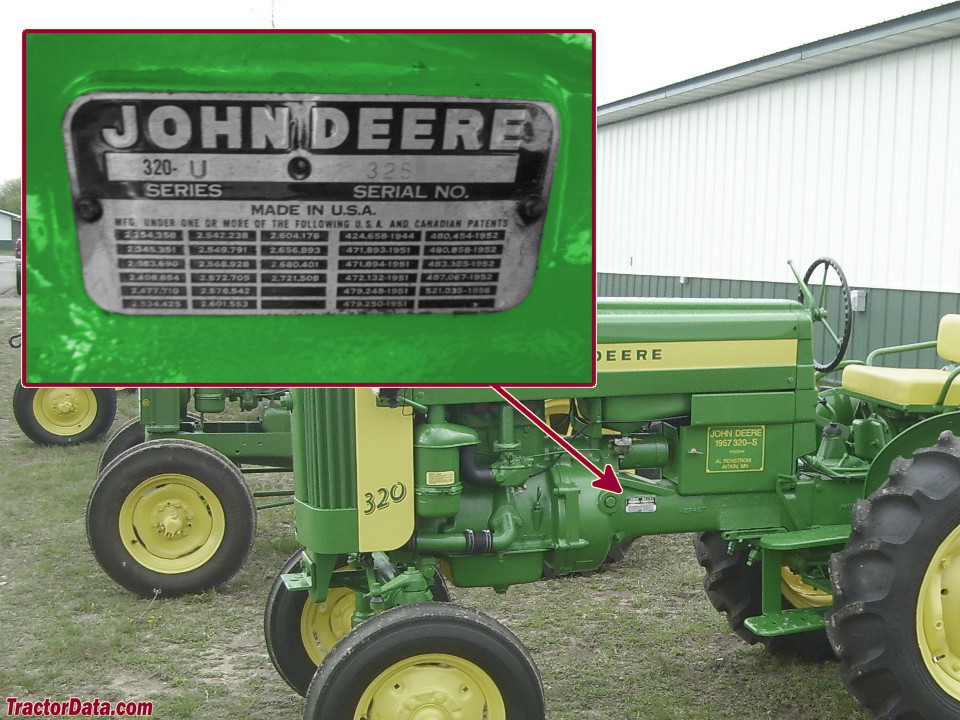

| 320 Serial Number Location |
 |
| Serial number plate on the left side of the 320, just behind the clutch housing. |
| Electrical |
| Ground | positive
|
| References |
 |
| The John Deere 20 series Two Cylinder Tractors by Benjamin Hain |
| Industrial Tractors and Equipment published in 1957, by John Deere |
| Tractors 1918-1976 published by John Deere* |
| *Publication contains known errors. |
