John Deere 620 Transmission


John Deere 620 tractor photo
1956 - 1958
Two-Cylinder 20 Series
Row-Crop tractor
Series map:
520
620
720
41.4hp*
53.3hp*
65.6hp*
*Estimated engine power for comparison only.
Transmission
ManufacturerJohn Deere
Typeunsynchronized gear
Gears6 forward and 1 reverse
Clutchmechanical dry disc
Oil capacity24 qts
22.7 L

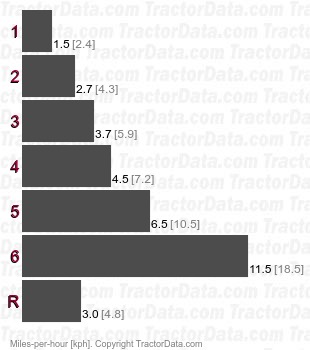

Speeds
With 13.6-38 rear tires.
620  unsynchronized gear speeds

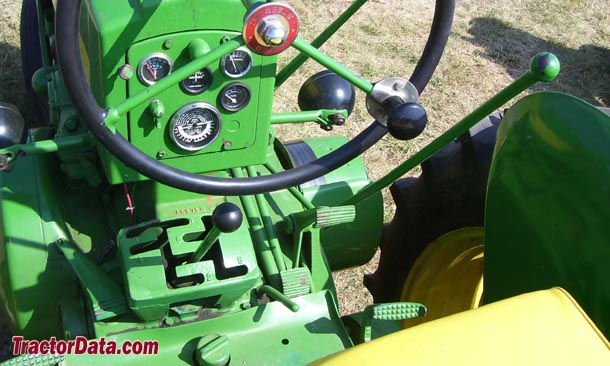

Shift Pattern
John Deere 620 transmission controls
