John Deere 80
| | 1955 - 1956 |
| Standard-tread tractor |
|
Series map:
70
80
53.7hp*
63.9hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Standard-tread tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 3,485
|
| John Deere 80 Power |
| Drawbar (claimed) | 46.32 hp
34.5 kW
|
| Belt (claimed) | 57.49 hp
42.9 kW
|
| Drawbar (tested) | 60.36 hp
45.0 kW
|
| Belt (tested) | 65.33 hp
48.7 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power assist optional
|
| Mechanical expanding shoe brakes |
| Open operator station. Optional steel cab. |
| Power Take-off (PTO) |
| Rear PTO Type | 540
|

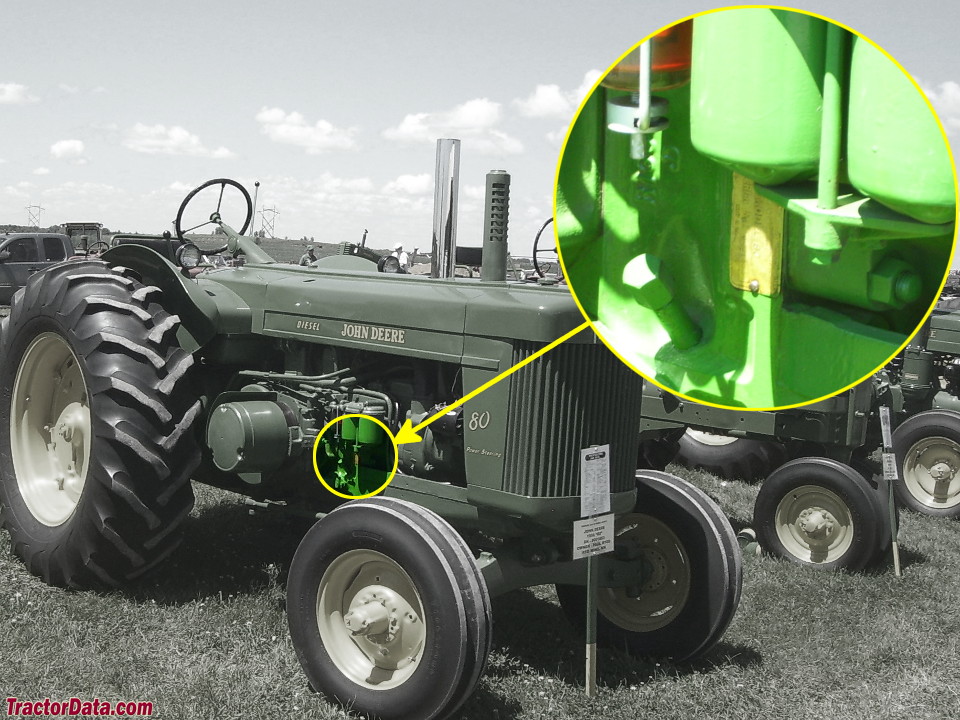

| 80 Serial Number Location |
 |
| Serial number plate on the right side of the John Deere 80, ahead of the pulley and below the fuel filter. |
| Belt Pulley |
| Diameter | 12.2 inches
30 cm
|
| Width | 9 inches
22 cm
|
| RPM | 1125
|
| Speed | 3599 ft/min
1096.98 meters/min
|
| Electrical |
| Ground | positive
|
| Battery volts | 6
|
| References |
 |
| The First Numbered Series of John Deere Tractors published in 2004, by Hain Publishing |
| Tractors 1918-1976 published by John Deere* |
| *Publication contains known errors. |
