John Deere 7530 Premium

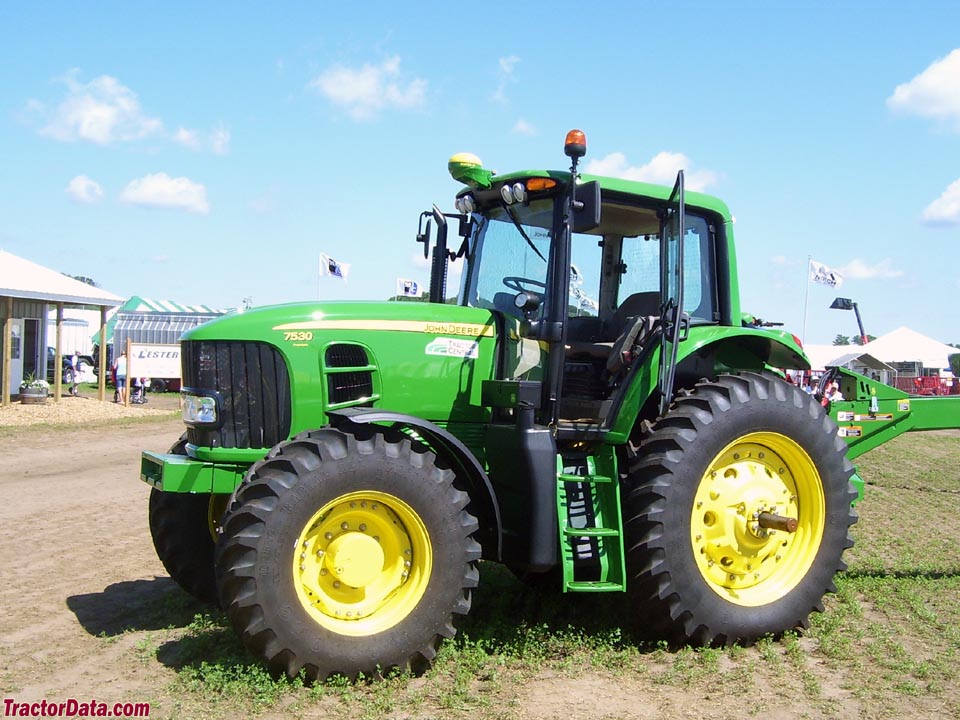

John Deere 7530 Premium tractor photo
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor
Series map:
7430 Premium
7530 Premium
166.0hp
180.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
FactoriesWaterloo, Iowa, USA
 Mannheim, Baden-Württemberg, Germany
Original price$135,731 (2010)
The John Deere 7530 was introduced in 2007 but not available in the United States until 2009.
John Deere 7530 Premium Engine
John Deere 6.8L 6-cyl diesel
Fuel tank92.5 gal
350.1 L
Engine details ...
John Deere 7530 Premium Transmissions
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
Transmission details ...
John Deere 7530 Premium Power
Engine (gross)180 hp
134.2 kW
PTO (claimed)153 hp
114.1 kW
Drawbar (tested)142.8 hp
106.5 kW
PTO (tested)175.8 hp
131.1 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Differential hydraulic wet disc brakes
ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension.
Hydraulics
Typeclosed center, pressure and flow compensated
Pressure3135 psi
216.2 bar
Valves2 to 4
Pump flow29 gpm
109.8 lpm
Tractor hitch
Rear TypeIII
Rear lift (at 24"/610mm)10,600 lbs
4808 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
 540/540E/1000 (optional)
 540E/1000/1000E (optional)
Front PTOindependent
Front PTO Type1000 (optional)
Dimensions & Tires
Wheelbase105.7 inches
268 cm
Weight14,600 lbs
6622 kg
Front tire16.9R28
Rear tire18.4R42
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
