John Deere MC Engine


John Deere MC tractor photo
1949 - 1952
Two-Cylinder Letter Series
Agricultural Crawler tractor
Series map:
MC
23.6hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
gasoline
2-cylinder 4-valve
liquid-cooled
Displacement100.5 ci
1.6 L
Bore/Stroke4.00x4.00 inches
102 x 102 mm
Air cleaneroil bath
Compression6:1
Rated RPM1650
Firing order1-2
Starter volts6
Coolant capacity14 qts
13.2 L
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.012 inches (cold)
0.305 mm
Exhaust valve clearance0.012 inches (cold)
0.305 mm
Engine Oil

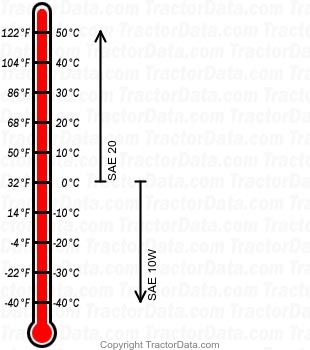

MC gasoline engine oil chart
Oil capacity5 qts
4.7 L
