John Deere M Tests


John Deere M tractor photo
1947 - 1952
Two-Cylinder Letter Series
Utility tractor
Series map:
M
22.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 387

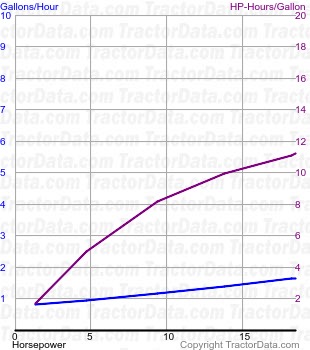

M fuel use from test 387
Nebraska Tractor Test 387
Gasoline 4-speed 2WD
October 6 - 16, 1947
Link: Nebraska Tractor Test 387 file
Belt power (max)20.45 hp
15.2 kW
Belt fuel use (max)2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power18.15 hp
13.5 kW
Gear 3 used for power test.
Max pull2,329 lbs
1056 kg
Gear 1 used for pull test.
