Tractors > Allis Chalmers > D19

Allis Chalmers D19 Tests



Allis Chalmers D19 tractor photo
1961 - 1964
D Series
Row-Crop tractor
Series map:
D19
85.0hp
Tractor Tests
NTTL 810: gasoline 8-speed 2WD
NTTL 811: diesel 8-speed 2WD
NTTL 814: LP gas 8-speed 2WD
Nebraska Tractor Test 810

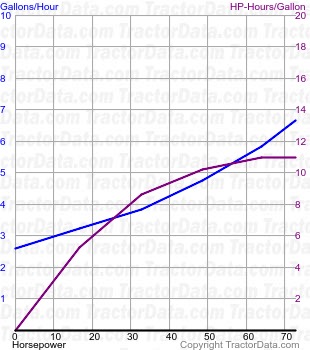

D19 fuel use from test 810
Nebraska Tractor Test 810
Gasoline 8-speed 2WD
April 3 - 19, 1962
Link: Nebraska Tractor Test 810 file
PTO performance
Power at rated engine speed71.54 hp
53.3 kW
Fuel use6.2 gal/hour
23.5 l/hour
Power at rated PTO speed65.19 hp
48.6 kW
Fuel use5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power63.91 hp
47.7 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 5 used for power test.
Max pull8587 lbs
3895 kg
Gear 1 used for pull test.
Nebraska Tractor Test 811

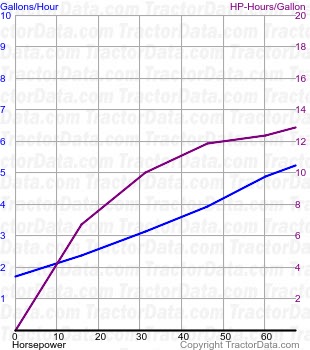

D19 fuel use from test 811
Nebraska Tractor Test 811
Diesel 8-speed 2WD
April 3 - 18, 1962
Link: Nebraska Tractor Test 811 file
PTO performance
Power at rated engine speed66.92 hp
49.9 kW
Fuel use5.2 gal/hour
19.7 l/hour
Power at rated PTO speed64.83 hp
48.3 kW
Fuel use4.9 gal/hour
18.5 l/hour
Drawbar performance
Max power62.05 hp
46.3 kW
Fuel use5.4 gal/hour
20.4 l/hour
Gear 5 used for power test.
Max pull8459 lbs
3837 kg
Gear 1 used for pull test.
Nebraska Tractor Test 814

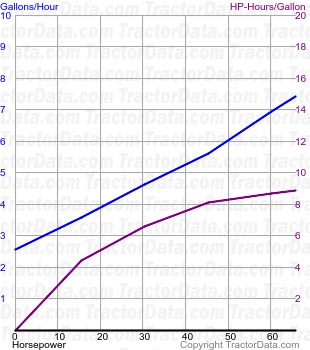

D19 fuel use from test 814
Nebraska Tractor Test 814
LP gas 8-speed 2WD
April 9 - 19, 1962
Link: Nebraska Tractor Test 814 file
PTO performance
Power at rated engine speed66.19 hp
49.4 kW
Fuel use7.4 gal/hour
28.0 l/hour
Power at rated PTO speed59.88 hp
44.7 kW
Fuel use6.5 gal/hour
24.6 l/hour
Drawbar performance
Max power58.29 hp
43.5 kW
Fuel use7.5 gal/hour
28.4 l/hour
Gear 5 used for power test.
Max pull8674 lbs
3934 kg
Gear 1 used for pull test.
