Allis Chalmers D17
| | 1957 - 1967 |
| D Series | | Row-Crop tractor |
|
Series map:
D15
D17
44.4hp*
63.0hp
| Production |
| Manufacturer | Allis Chalmers
|
| Row-Crop tractor |
| Built in West Allis, Wisconsin, USA |
| Total built | 84,914 (total)
|
| | 51,598 (gas)
|
| | 12,284 (diesel)
|
| Original price was $5,400 in 1967 |
| Allis Chalmers D17 Power |
| Engine | 63 hp
47.0 kW
|
| Plows | 5
|
| Drawbar (tested) | 48.64 hp
36.3 kW
|
| Belt (tested) | 52.70 hp
39.3 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power OptOptional
|
| Open operator station. |
| Capacity |
| Fuel | 19 gal
71.9 L
|
| | 22.3 gal (LP gas)
84.4 L
|
| Hydraulic system | 9.75 gal
36.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9.75 gal
36.9 L
|
| Pressure | 2000 psi (Series IV)
137.9 bar
|
| Valves | 1
|
| Pump flow | 1.5 gpm (Traction-Booster)
5.7 lpm
|
| Total flow | 10.5 gpm (main pump Series IV)
39.7 lpm
|
| Tractor hitch |
| Rear Type | II *Category II hitch was optional on the D17 Series IV.
|
| Type | Snap-Coupler
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|

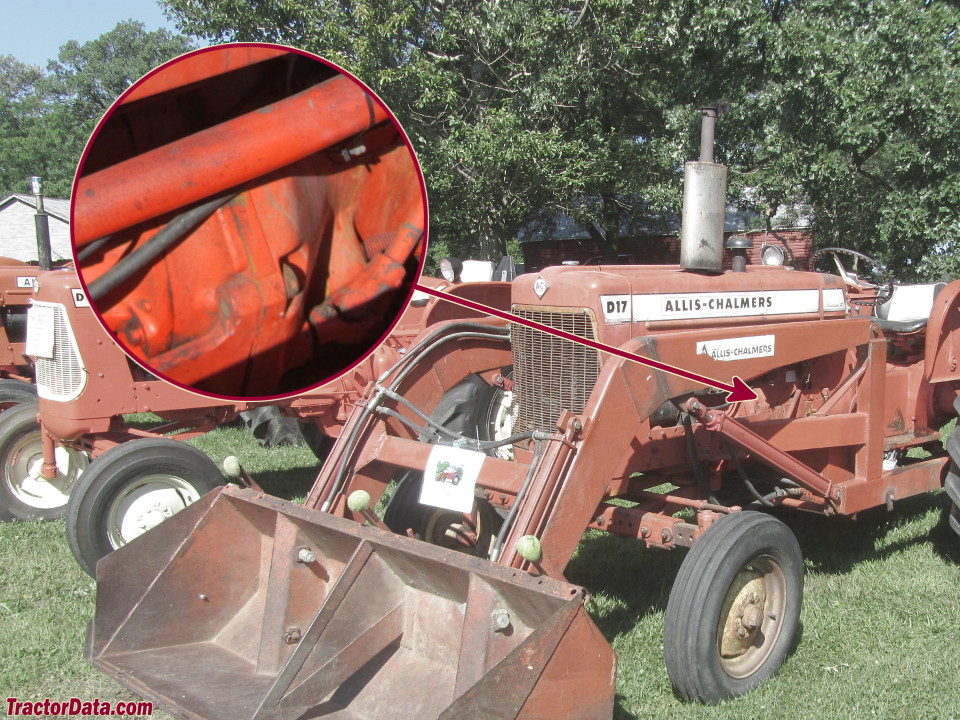

| D17 Serial Number Location |
 |
| Left-front of torque housing |
| D17 Serial Numbers |
| 1957 | 1001 (Series I)
|
| 1958 | 4300 (Series I)
|
| 1959 | 16500 (Series I)
|
| 1960 | 28200 (Series I)
|
| Final | 31625 (Series I)
|
| 1960 | 32001 (Series II)
|
| 1961 | 33100 (Series II)
|
| 1962 | 38070 (Series II)
|
| Final | 41540 (Series II)
|
| 1962 | 42001 (Series III)
|
| 1963 | 65001 (Series III)
|
| 1964 | 70611 (Series III)
|
| Final | 72768 (Series III)
|
| 1964 | 75001 (Series IV)
|
| 1965 | 77090 (Series IV)
|
| 1966 | 80533 (Series IV)
|
| 1967 | 86061 (Series IV)
|
| Final | 89213 (Series IV)
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Battery volts | 12
|
| References |
 |
| Loaders - picking up where the others leave off published in 1979, by Allis Chalmers |
| 50 choices that tailor tractor power to your needs published in 1960, by Allis Chalmers |
| Operators Instructions D17 Series III (TM-324A) published in 1962 |
| D-17 Utility Tractor published in 1960, by Allis Chalmers |
| more work... less sweat published in 1962, by Allis Chalmers |
| It's here! New One-Ninety XT published in 1965, by Allis Chalmers |
