Allis Chalmers D17 Transmission


Allis Chalmers D17 tractor photo
1957 - 1967
D Series
Row-Crop tractor
Series map:
D15
D17
44.4hp*
63.0hp
Transmission
TransmissionPower-Director
Typepartial power shift
Gears8 forward and 2 reverse
The transmission offers four speeds forward and one reverse. The separate Power-Director hand lever provides an on-the-go shift between direct and a lower drive, plus a neutral position that allows the PTO to continue operation.

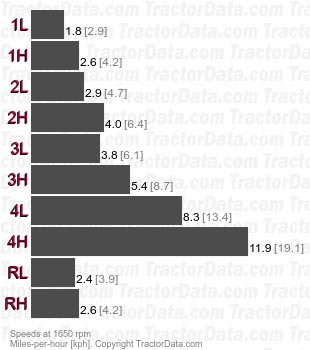

Speeds
With 14.9-28 rear tires.
D17 Power-Director partial power shift speeds
Shift Pattern
Allis Chalmers D17 transmission controls
