Allis Chalmers D17 Tests


Allis Chalmers D17 tractor photo
1957 - 1967
D Series
Row-Crop tractor
Series map:
D15
D17
44.4hp*
63.0hp
Tractor Tests
NTTL 635: gasoline Power-Director 2WD
NTTL 636: diesel Power-Director 2WD
NTTL 644: LP gas Power-Director 2WD
Nebraska Tractor Test 635

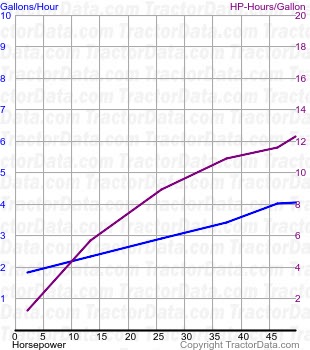

D17 fuel use from test 635
Nebraska Tractor Test 635
Gasoline Power-Director 2WD
November 14 - 25, 1957
Link: Nebraska Tractor Test 635 file
Belt power (max)52.70 hp
39.3 kW
Belt fuel use (max)4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power48.64 hp
36.3 kW
Gear 3-High used for power test.
Max pull7,061 lbs
3202 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 636

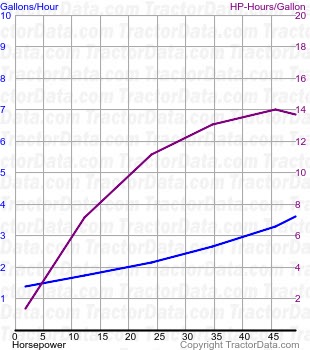

D17 fuel use from test 636
Nebraska Tractor Test 636
Diesel Power-Director 2WD
November 14, 1975 - November 26, 1957
Link: Nebraska Tractor Test 636 file
Belt power (max)51.14 hp
38.1 kW
Belt fuel use (max)3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power46.16 hp
34.4 kW
Gear 2-High used for power test.
Max pull7,126 lbs
3232 kg
Gear 1-High used for pull test.
Nebraska Tractor Test 644

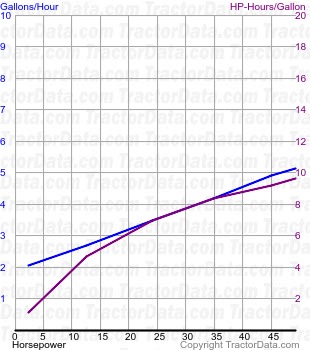

D17 fuel use from test 644
Nebraska Tractor Test 644
LP gas Power-Director 2WD
April 1 - 12, 1958
Link: Nebraska Tractor Test 644 file
Belt power (max)50.79 hp
37.9 kW
Belt fuel use (max)5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power46.23 hp
34.5 kW
Gear 3-High used for power test.
Max pull6,845 lbs
3104 kg
Gear 1-High used for pull test.
