J.I. Case 480E

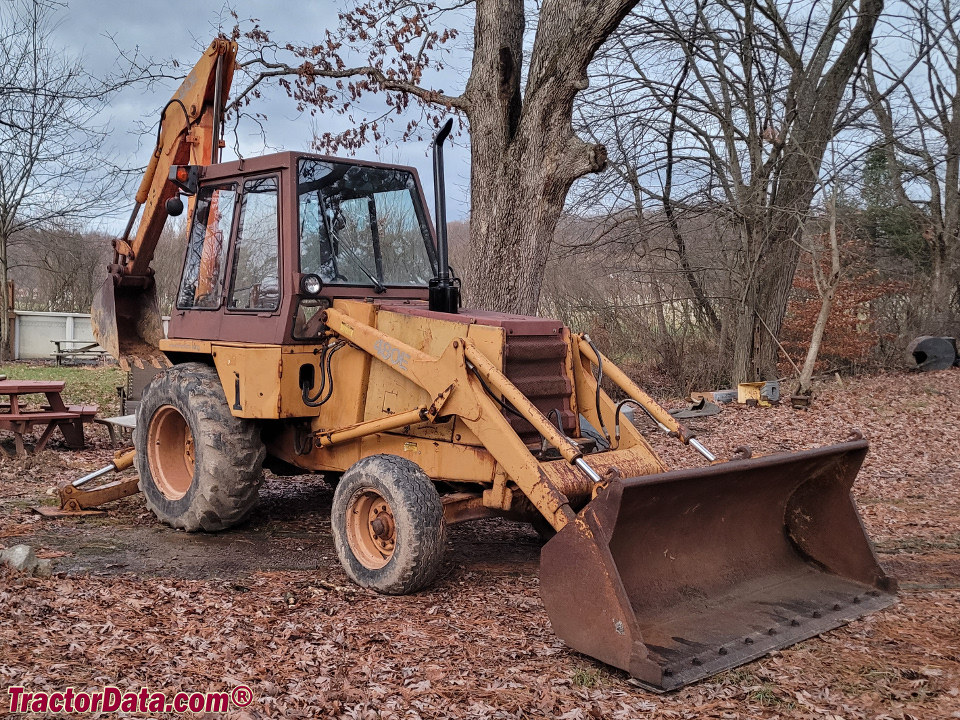

J.I. Case 480E tractor photo
1988 - ????
Backhoe loader tractor
Production
ManufacturerJ.I. Case
Backhoe loader tractor
Variants
480Ebackhoe
480E LLlandscape loader
J.I. Case 480E Engine
J.I. Case 3.9L 4-cyl diesel
Engine details ...
J.I. Case 480E Power
Engine (gross)69 hp
51.5 kW
Engine (net)63 hp
47.0 kW
Mechanical
Two- or four-wheel drive
Power steering
Four-post ROPS standard. Optional cab with heater.
Hydraulics
Typeopen center
Pressure2350 psi
162.0 bar
Pump flow23 gpm
87.1 lpm
Tractor hitch
Rear TypeI
 II OptOptional
Rear lift (at ends)5197 lbs
2357 kg
Rear lift (at 24"/610mm)2850 lbs
1292 kg
Dimensions & Tires
2WD Wheelbase80 inches
203 cm
4WD Wheelbase80.5 inches
204 cm
Weight9323 to 10904 pounds
Front tire7.50x16
Rear tire14.9x24
Full dimensions and tires ...
Backhoe & Loader
Dig depth144.3 inches
366 cm
Dump angle43 inches
109 cm
Loader/Backhoe details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps65
Battery CCA650
Battery volts12
References
480E references literature
Competitive Information published in 1987, by J.I. Case
Model 480E Loader/Backhoe published in 1988, by J.I. Case
Utility Equipment published in 1988, by J.I. Case
